  A NOTE ABOUT
  NATURAL GAS APPLIANCES:
  Some
  states
  (including
  but
  not
  limited
  to
  MA)
  require
  portable
  generators
  that
  are
  connected
  to
  a
  home’s
  gas
  supply
  (even
  temporarily)
  to
  be
  listed
  devices.
  Other
  states
  default
  to
  the
  International
  Fuel
  Gas
  Code
  and
  allow
  non-listed
  outdoor
  only
  devices
  such
  as
  outdoor
  natural
  gas
  grills,
  heat
  lamps
  and
  other
  accessories
  to
  be
  installed
  as
  permitted
  by
  your
  town
  and
  local
  inspector.

  Please
  check
  first
  with
  your
  local
  inspector
  if
  you
  are
  not sure.



  Always use a
  licensed plumber!
  This is your home.
  Get it done right and get it
  inspected.  Nobody knows state,
  federal and local safety codes
  better than the licensed experts.



  All off our generators work with our optional
  APC/HONDA programmable auto load
  shedding 120Vac transfer switch kits.  Our kits
  aren’t just the basic switch, but come complete
  with an outdoor water tight power inlet install
  package


  This switch, designed by APC and HONDA will
  automatically shed less needed loads to make sure there’s
  enough power to start critical loads. Then it automatically
  turns the other loads back on as more power becomes
  available!
  For instance, it will automatically turn off your fridge and
  freezer for 10min while you make popcorn in your
  microwave - even with a 2000Watt Honda or Yamaha!


  This is how you connect your home to your
  generator


  GET A
  “SMART” CIRCUIT
  TRANSFER SWITCH!


  Automatic
  home
  backup of
  6-10
  circuits!


  Includes a 30Amp
  outdoor inlet kit



Need
  Automatic
  Load
  Management?

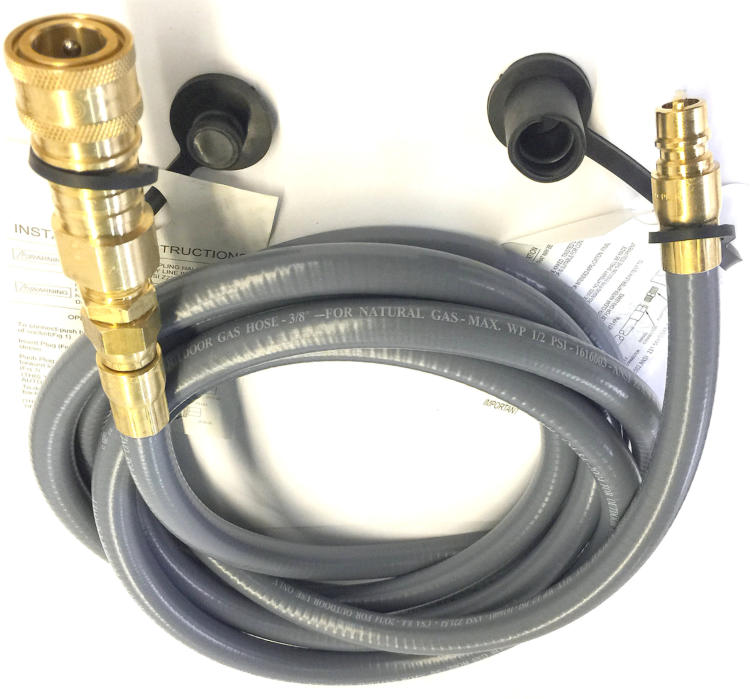

  Add 12’ x 1/2”id quick-
  disconnect extension
  hose for propane and
  natural gas

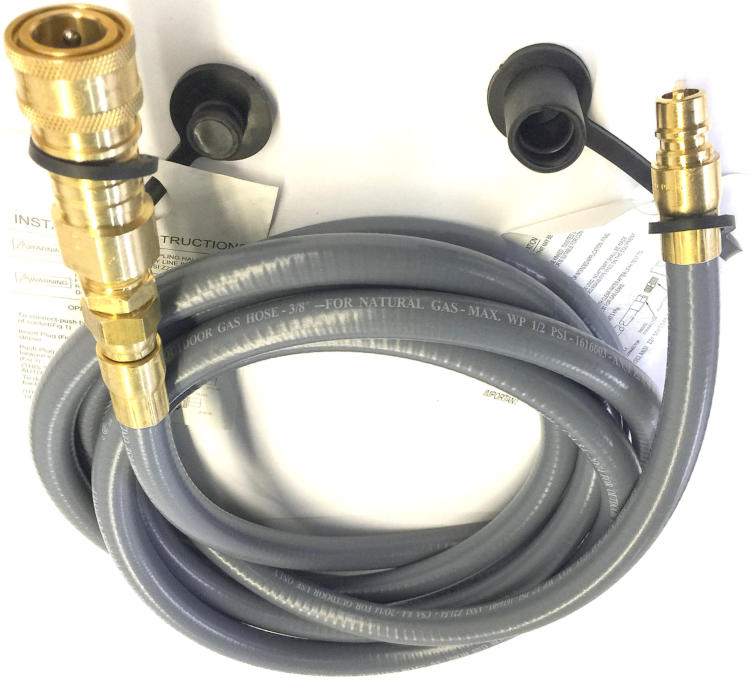

  Add 12’ x 3/8”id
  quick-disconnect
  extension hose for
  propane

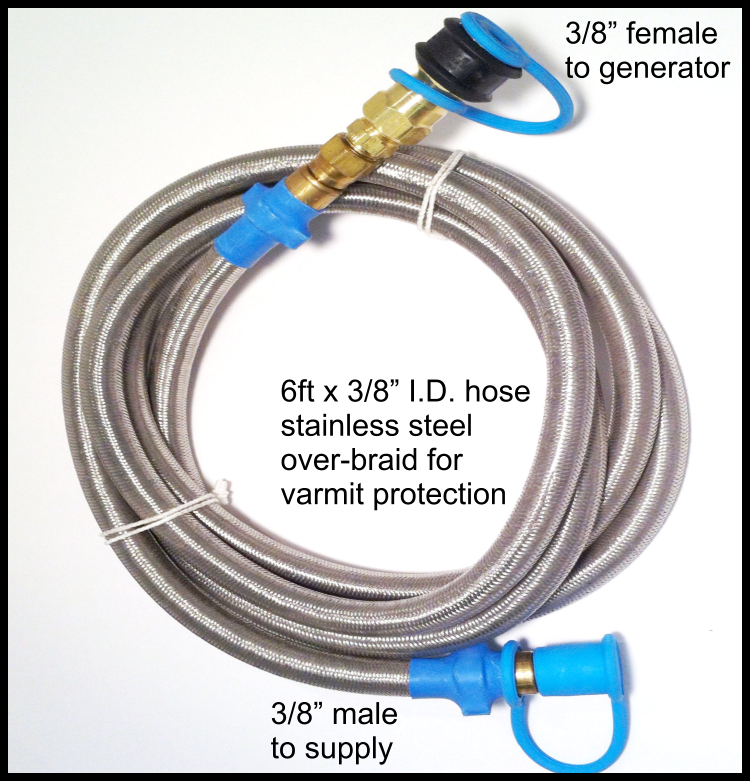

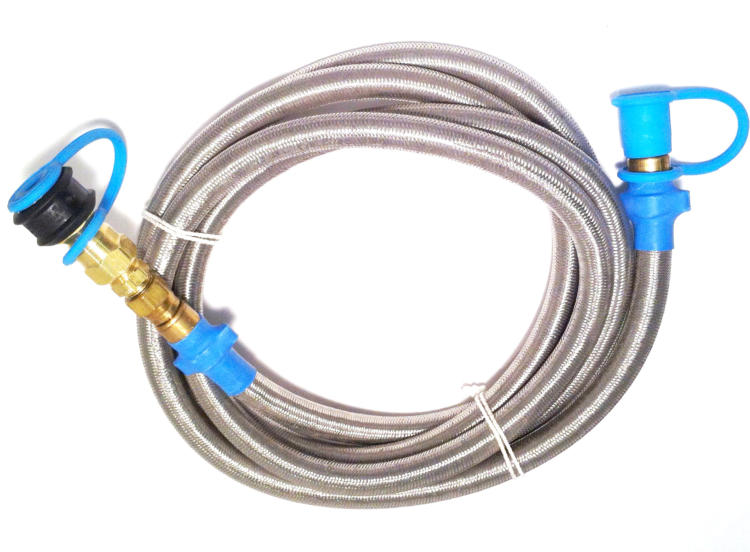

  Add 6’ x 3/8”id stainless
  steel over-braided  quick-
  disconnect extension
  hose for propane

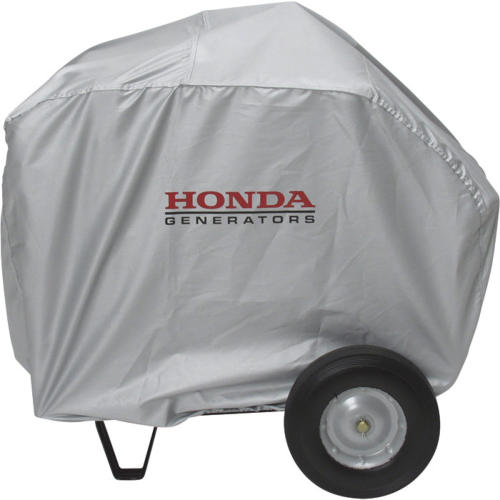

  Add Honda Silver
  EU7000is cover

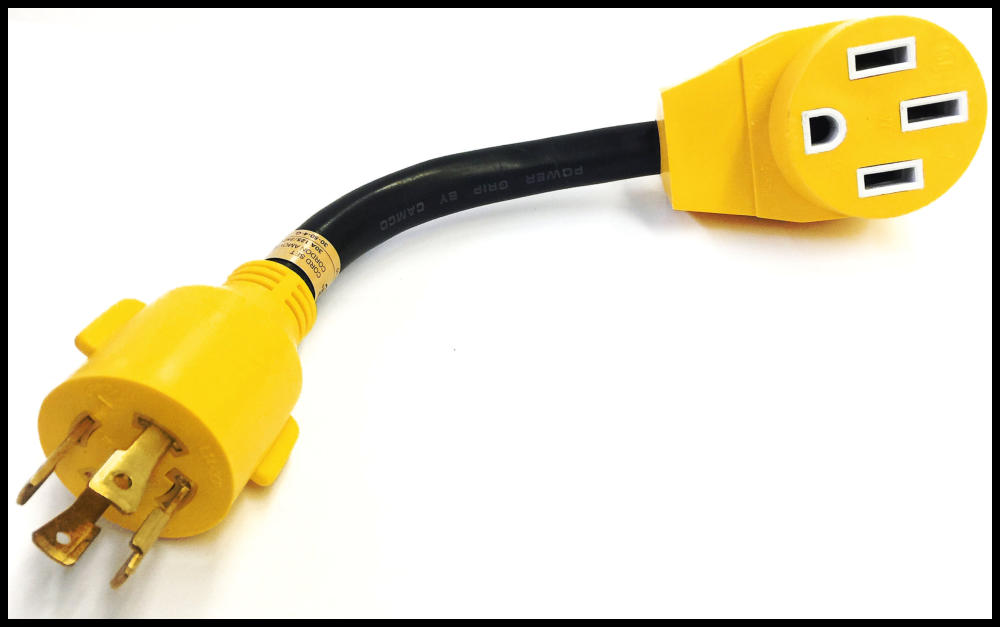

  Add 120/240 30Amp
  to RV 50Amp trailer
  adapter

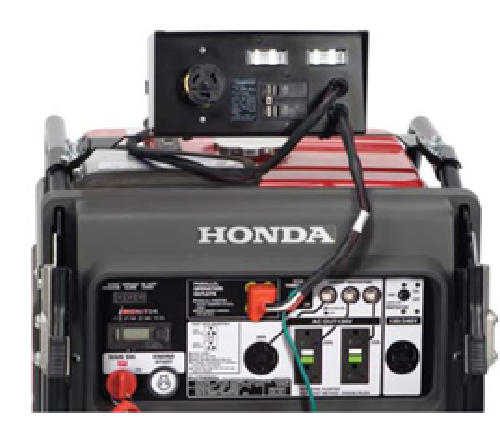

  Add Honda parallel kit
  for paralleling two
  EU7000is units together

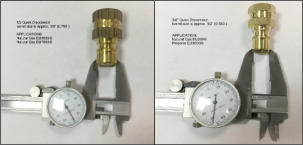

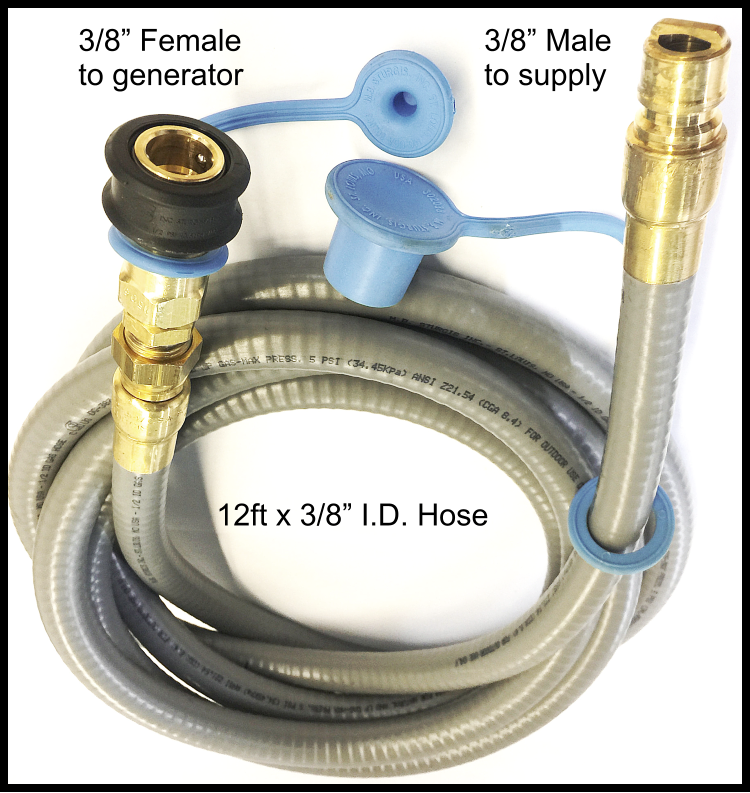

  3/8” Female
  to generator


  1/2” Male
  to supply


  12ft x 1/2” I.D. Hose











   Propane       Natural Gas
    Load
  0.94 gal/hr    84,000 BTU/hr    5500 Watts
  0.52 gal/hr    46,000 BTU/hr    2750 Watts
  0.37 gal/hr    32,700 BTU/hr    1375 Watts

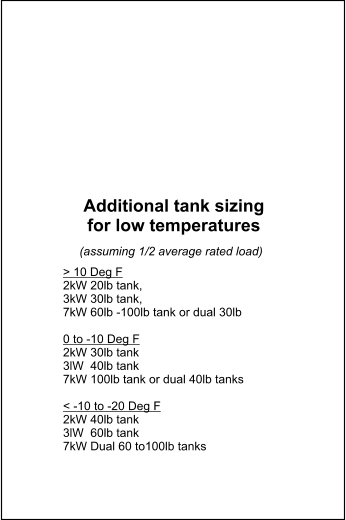

  How long will
  my tank last?






  Shutoff +Quick Disconnect


  How simple is it?
  Add an outdoor shutoff valve then a quick-
  disconnect for your generator and gas grill.
  Then order one of our gas extension hoses
  and...


  We use the same pressure as the
  natural gas or propane inside your
  home.

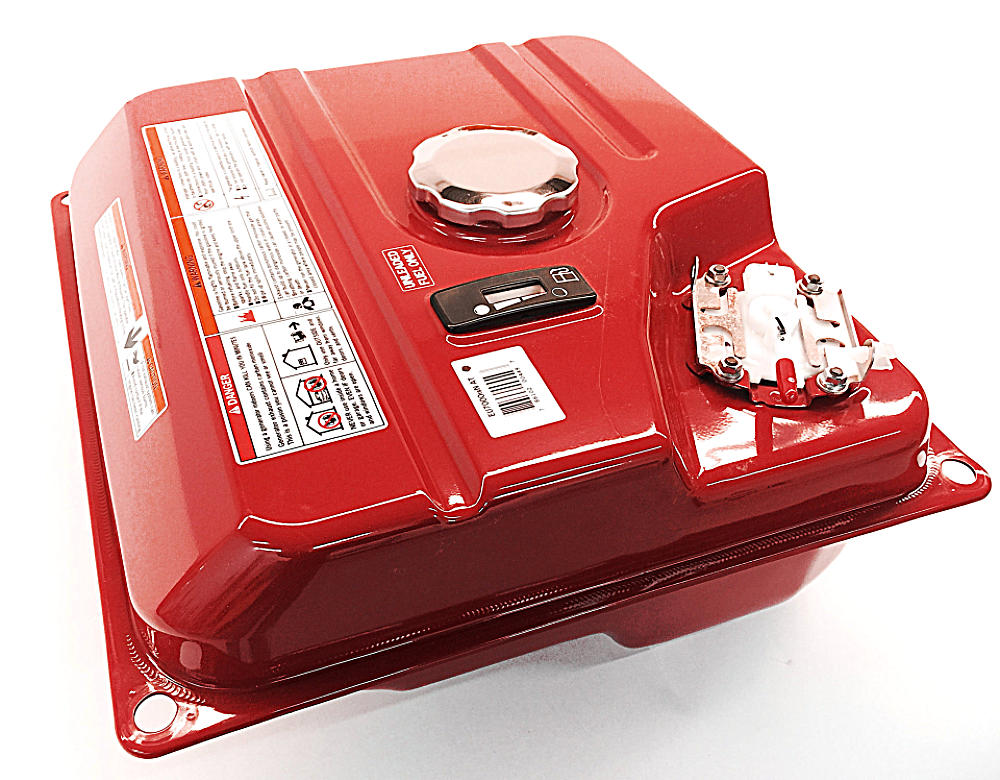

  Add optional  gasoline tank
  with fuel pump to convert
  back to gasoline in about 15
  minutes!


  Please note we are not a Honda dealer.  Honda is a registered trademark of Honda Motor Co.

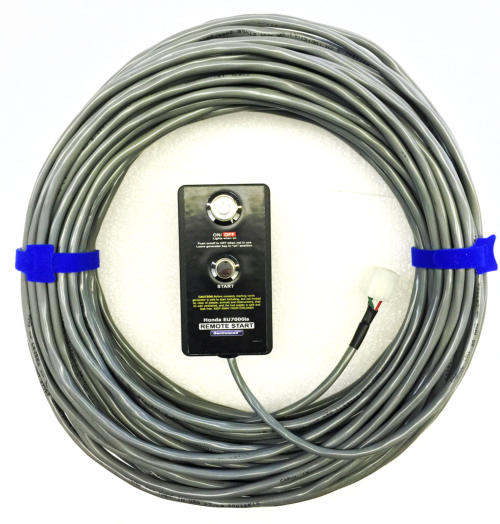

  Add Genconnex

  wired
  remote start/stop










































  Add 25ft Extension
  Cord, 10gauge, L14-30
  to L14-30, 120/240Vac
  7.5kWatt rated


  Add Outdoor inlet box
  for L14-30, 120/240Vac
  7.5kWatt rated
  extension cord

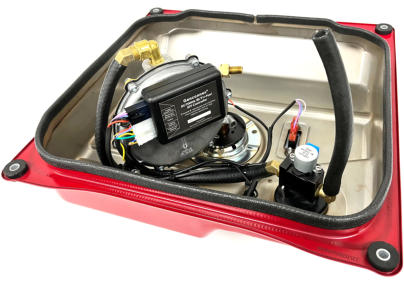

  Add Dual Tank
  Auto-Switchover
  regulator with 10ft
  hose & Quick
  disconnect output


  Add Genconnex

  EU7000is
  Cold Weather Kit for
  natural gas and propane
  operation below 0.0 deg F









  How do I connect
  to my home’s
  natural gas or
  propane?



  Additional information

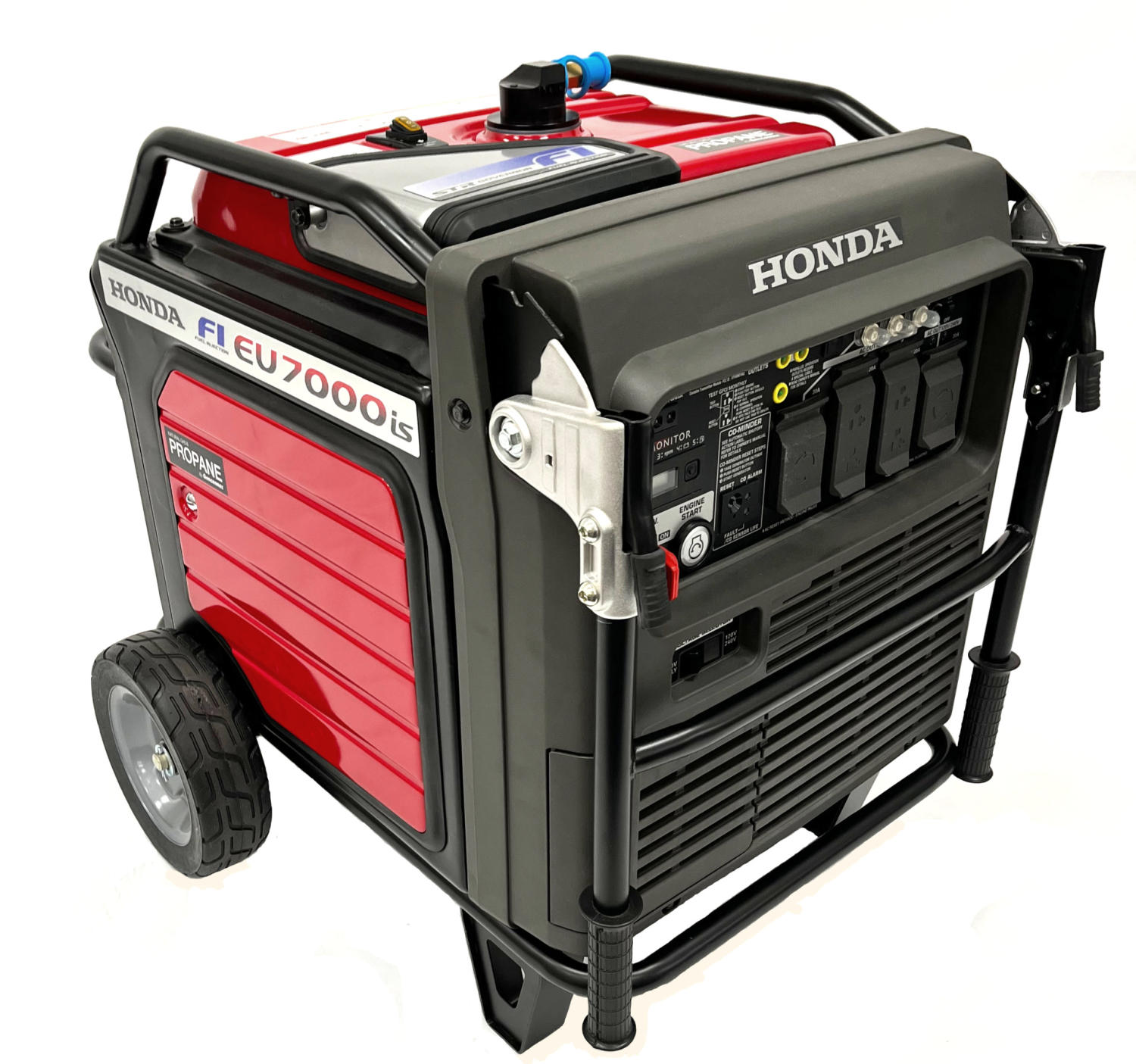

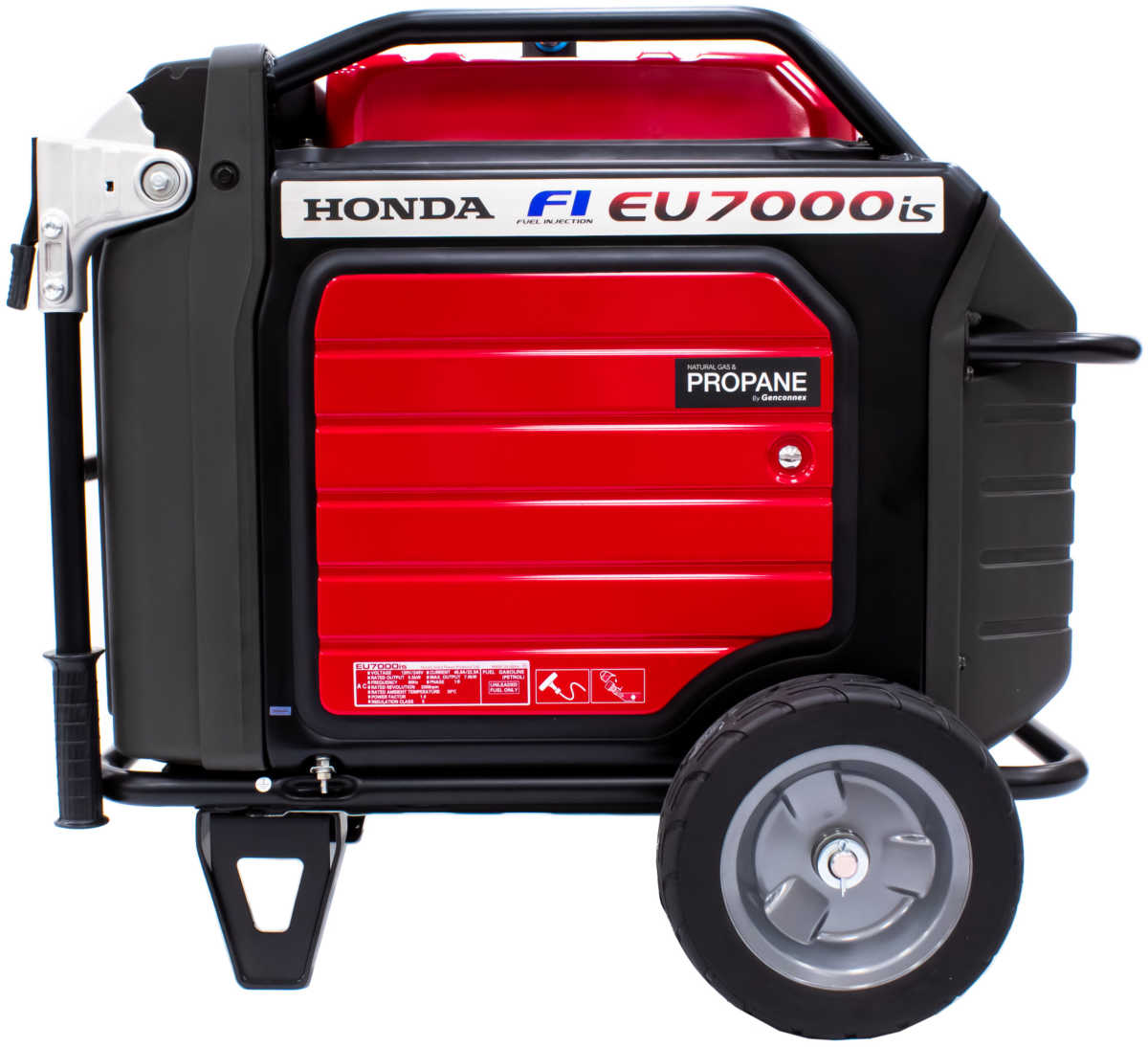

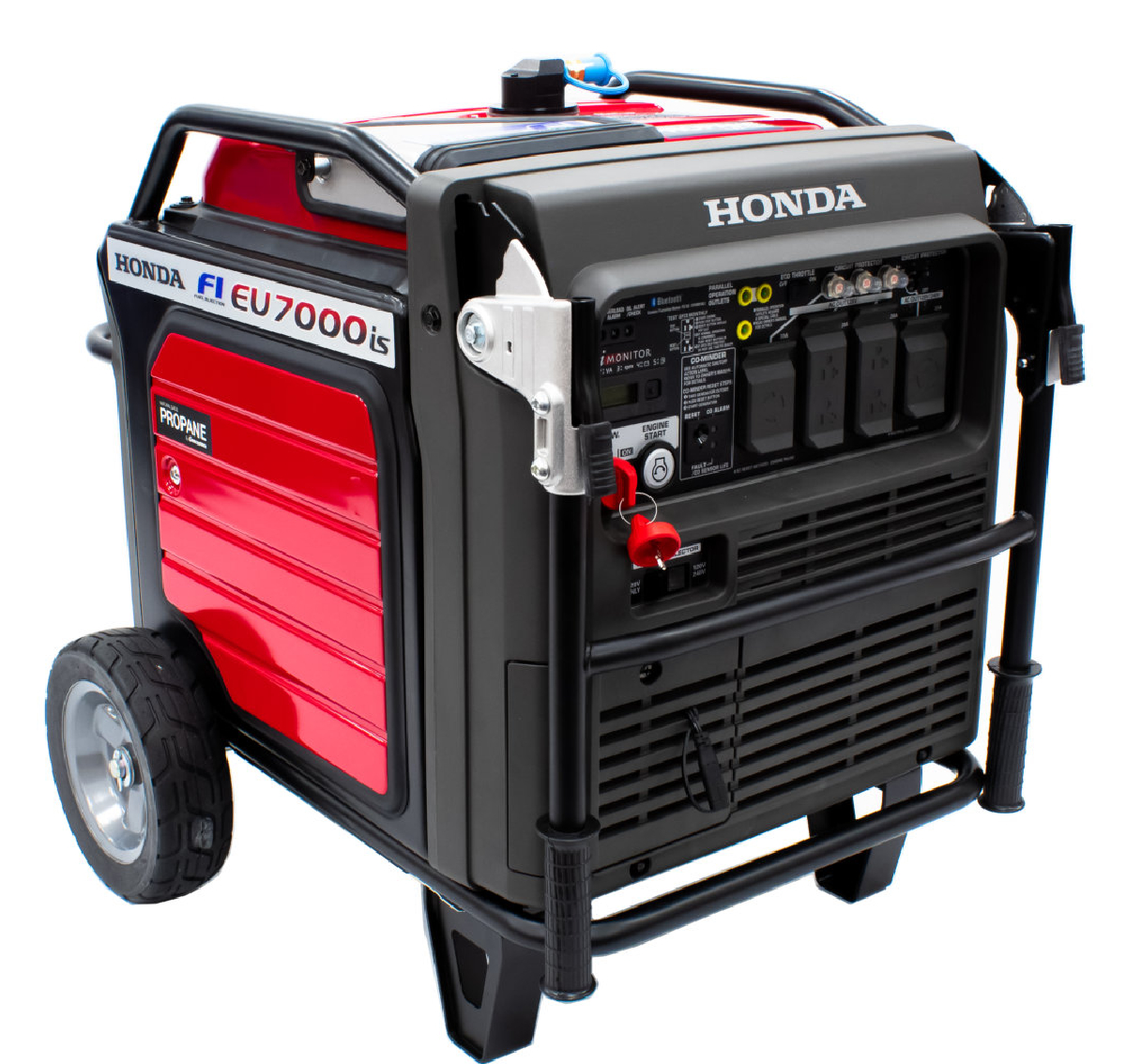

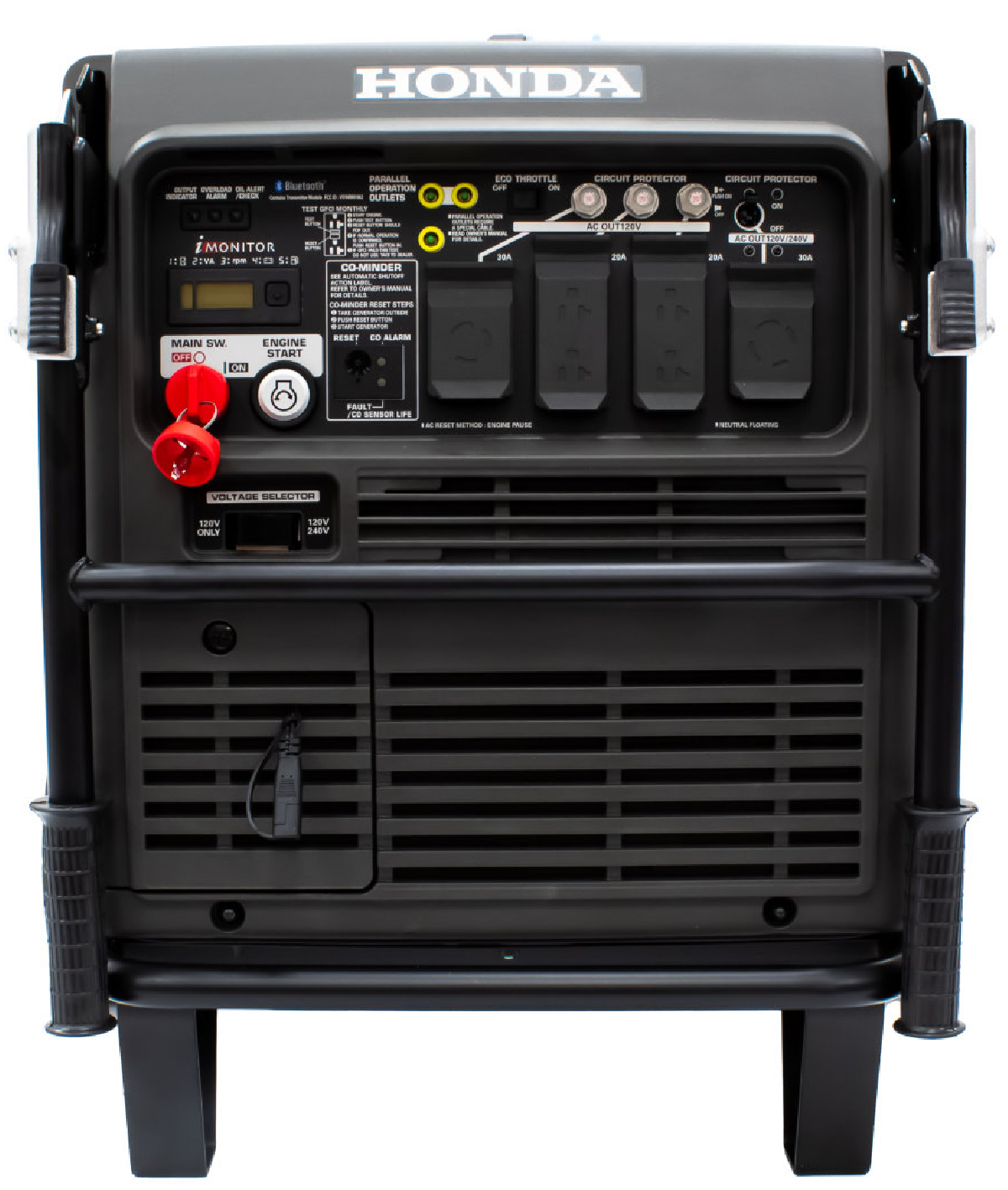

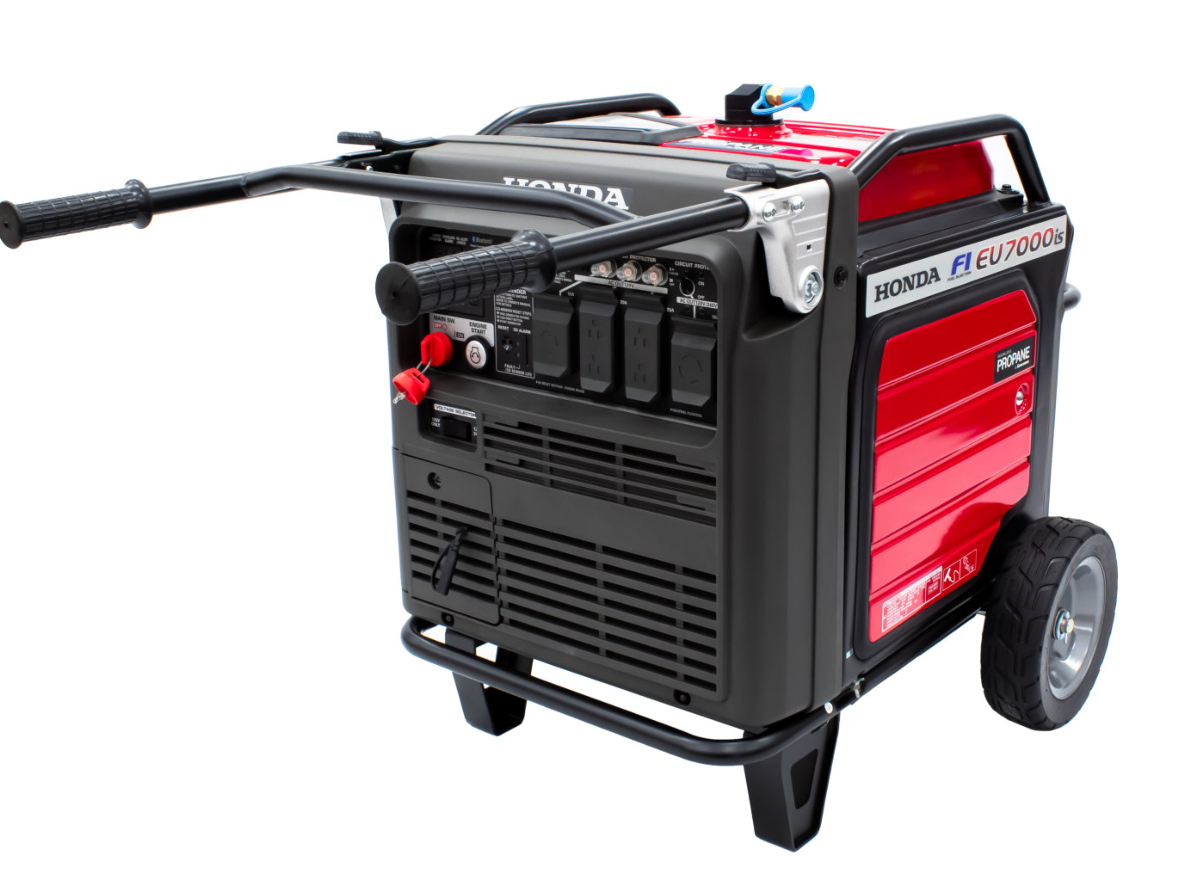

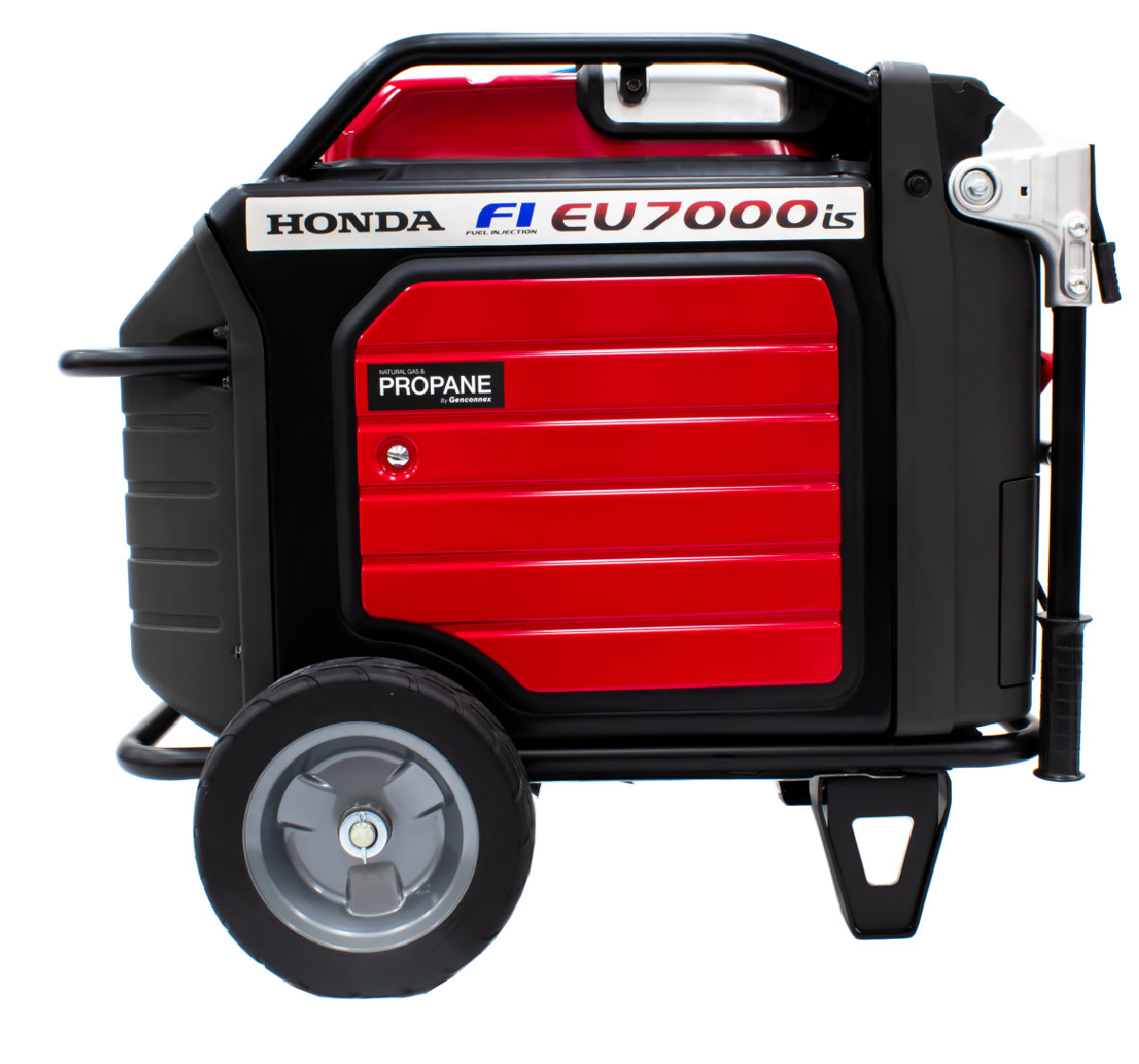

Bi-Fuel HONDA EU7000is
  Propane & Natural Gas Whisper
  Quiet EFI Inverter Generator
  conversion engineered by Genconnex Direct


  FUEL USAGE

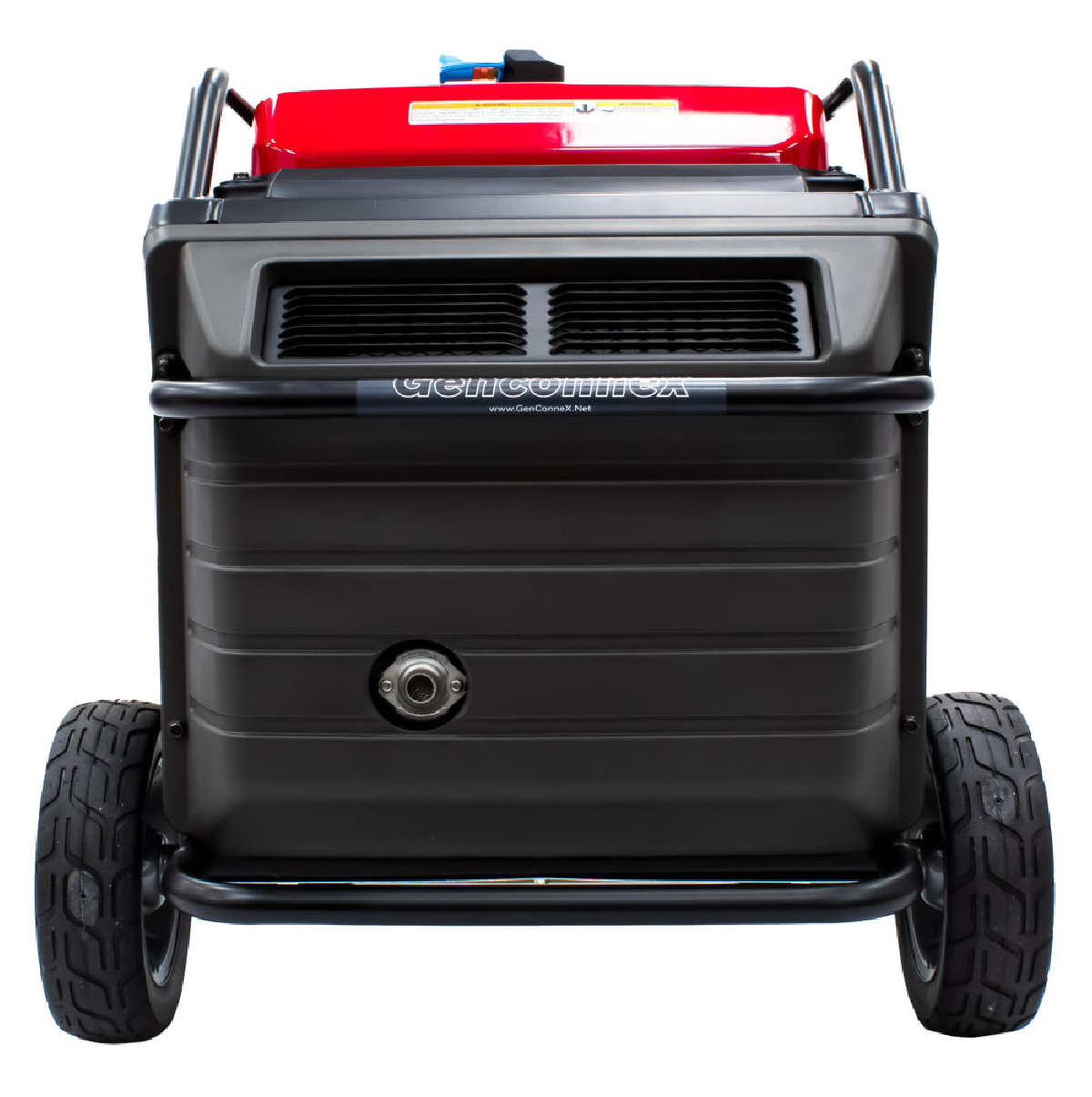

All Genconnex generators have a
  ⅜” quick disconnect inlet for easily
  connecting to your grill port or BBQ
  tank using our hose with pressure
  reducing regulator to a pressure of
  7-13”w.c.,  (aka 1/2” PSI)





  6’ propane hose with
  integral regulator for
  connecting to standard
  BBQ tank


  12’ x 3/8” id hose with
  3/8” quick-disconnect


  6’ stainless steel over-
  braided hose with 3/8”
  quick-disconnect











  12’ propane hose with
  integral regulator for
  connecting to standard
  BBQ tank


  GENERATOR DIMENSIONS
  28”W x 34”L x 30”H x 254lbs


  FUEL CONNECTION


  EU7000is
  PROPANE
  HOSE OPTIONS

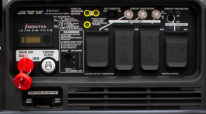

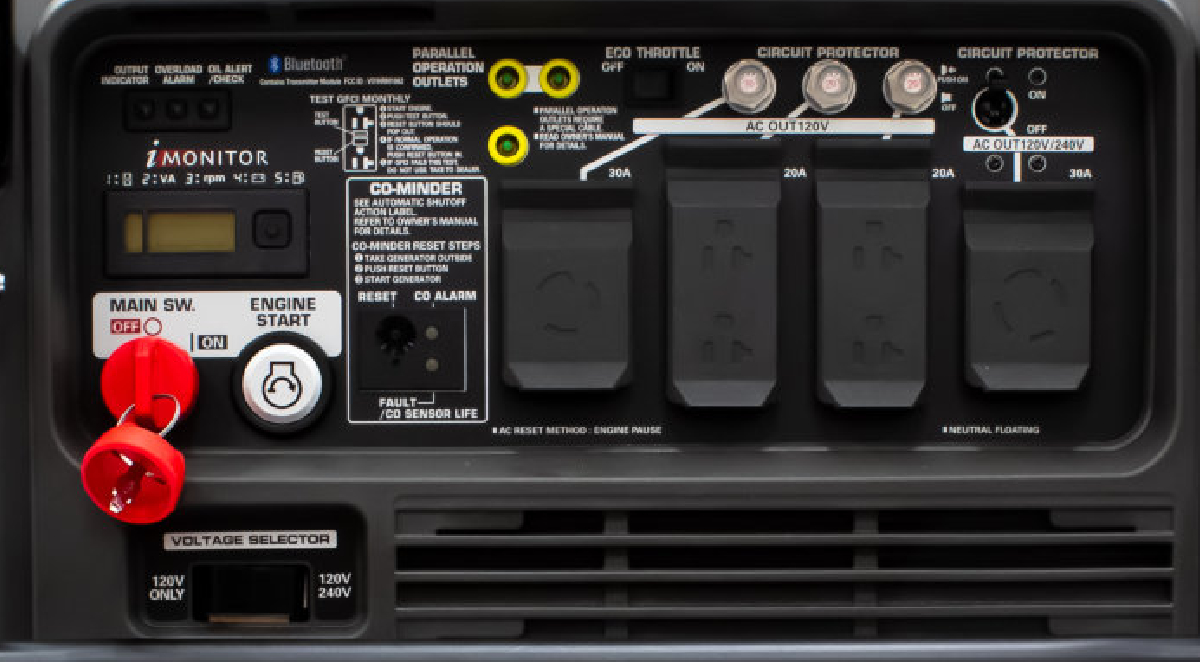

  4 standard GFCI outlets, 1 30Amp-
  120Vac outlet and 1 30Amp-120/240
  outlet under protective covers. note
  to use 4 prong 120/240 outlet press
  selector switch to 120/240Vac


  12’ x 1/2” id hose with
  1/2” quick-disconnect
  MUST ONLY USE
  THIS LARGER ½ ID
  WITH NATURAL GAS









  Genconnex billet
  aluminum & brass
  propane and natural
  gas injection system
  Included


  1
  Output ratings are +/-3% measured at 68deg F, 29.92
  inches of mercury. Your results may vary at different
  temperature, and air pressure/altitude




  Specifications





















   Extra female quick-
  disconnect for your natural
  gas pipe included


  EU7000is
  NATURAL GAS
   HOSE OPTIONS





  Genconnex Direct
  GXG-LPNG-EU7000is-WSA-EC5.0



  Ships in 2-3 weeks


  $6,299.99


  shipping


  +


  Click on pictures to enlarge


  No Sales Tax outside of MA



  Shipping Rates Apply to lower 48 States Only


  Pick it up at your Freight Terminal?


  SHIPPING NOTES:
  Not eligible for shipping to Canada



  NOTE: IN CALIFORNIA FOR STATIONARY EMERGENCY USE ONLY.


  NOTE: Freight may not deliver if your driveway is
  too steep or not accessible by small box truck




  Generator Features & Benefits
  - 7,000 / 5,500 Watts peak/rated propane
  1
    - 5,800 / 5,500 Watts peak/rated natural gas
  1

  - Ultra Sound Absorbing Enclosure
      At 52dBa @1/4 load, 60 dBa @ rated load

  - Inverter Output
      Fuel efficient and electronics safe

  - Push button start or remote start

  - 120/240Vac or 120Vac
      Selection switch on front
  - Bluetooth remote control
      Turn on and off your generator up to about 50ft
  - CO Detector built in
      Designed to turn off your generator if it senses Carbon Monoxide
  - Built-in Power Meter
      Know what your loads each draw
  - Warranty
   - We offer a new limited warranty of
      3 years/1000hr - see our warranty page.

  - EPA certified 50 States



Typical Loading
  240Vac well pump
  Large refrigerator/freezer
  Heating system or window A/C units
  Hall or bathroom lights
  Garage door opener
  Microwave and coffee maker
  Internet/TV and room light
  sump pump


  What’s Included
  Genconnex generator

GXG-LPNG-EU7000is-SA-EC

  Oil funnel and 1 quart of
  fully synthetic oil

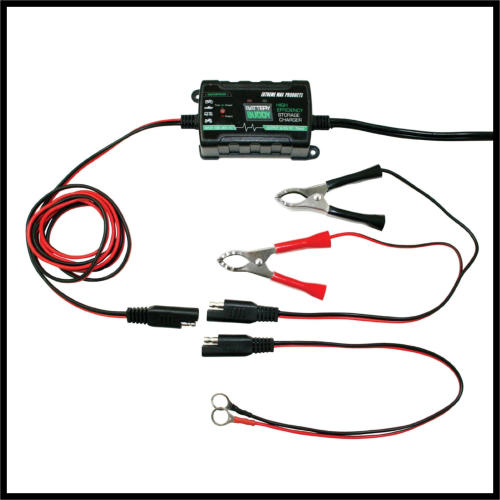

  Detachable Battery Tender
  (battery connection pre-installed)



























  How it works

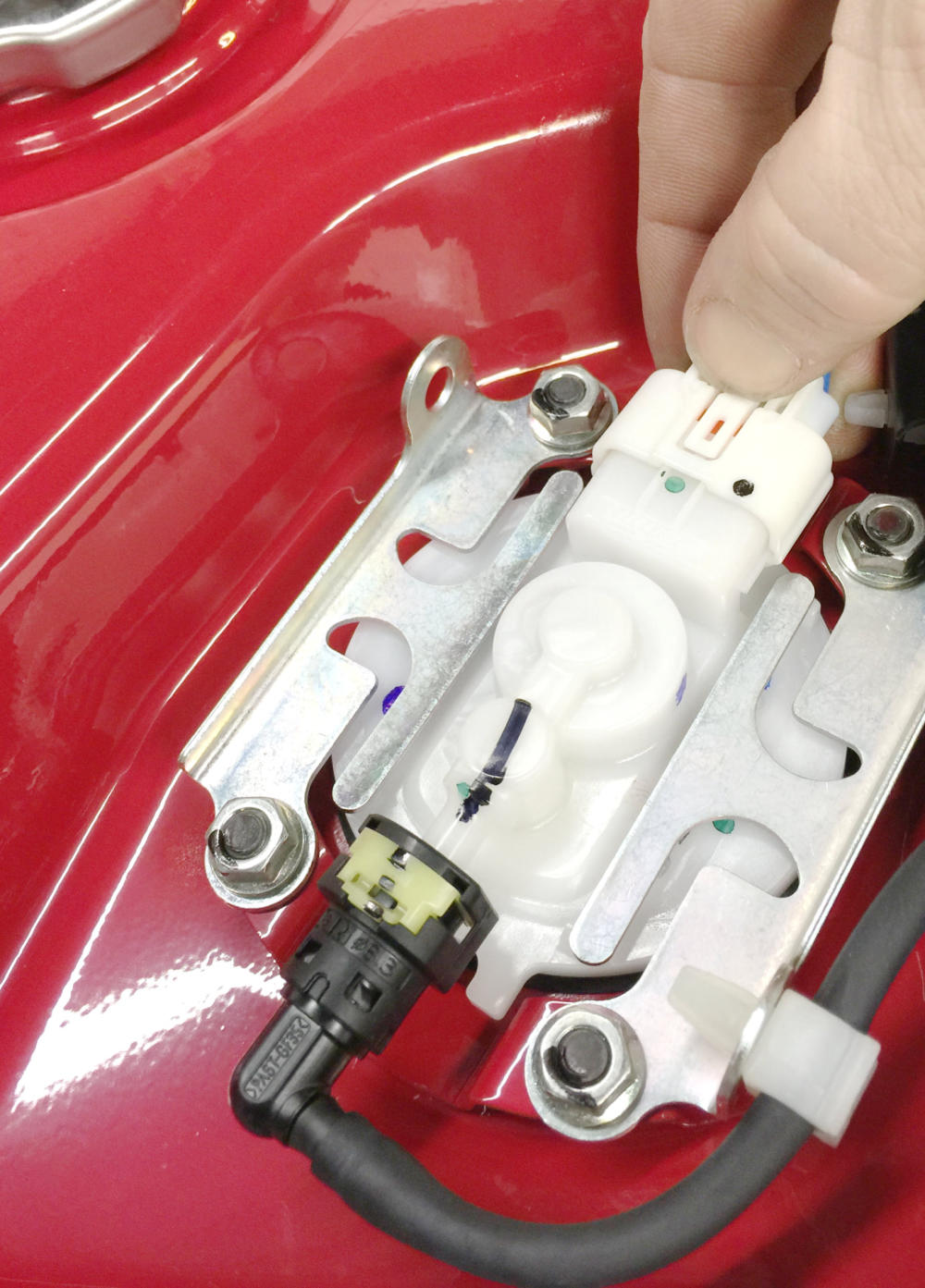

  Genconnex
  EFI fuel induction
  control valve
  Provides precise control of fuel


  Genconnex
  EFI control computer
  Provides real-time closed-loop control of air/fuel ratio
  from oxygen sensor for optimum fuel performance,
  rapid 0-100% load change performance, and auto
  correction for air pressure/altitude




  Oxygen sensor
  feedback harness
  Provides real-time feedback of
  combustion gas similar to modern
  automobiles

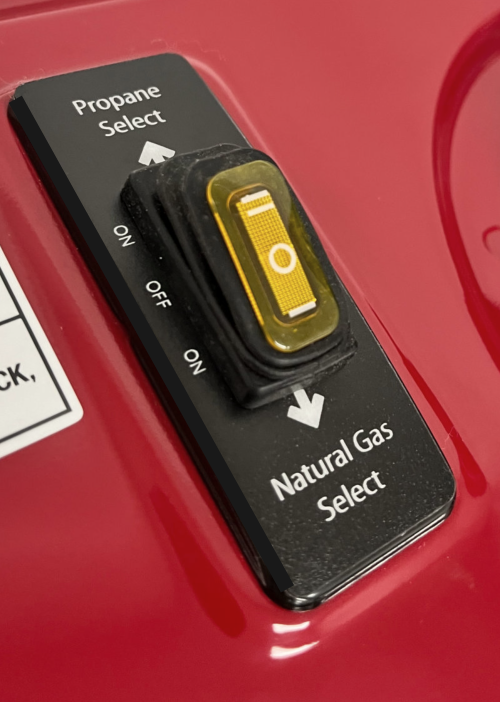

  Fuel selection switch
  Provides input for computer to change
  feedback response based on fuel type


  Secondary safety
  fuel shutoff valve
  Provides secondary fuel lock-off
  required for remote start/stop









  Switch Position


   I


  II


  7,000W Propane


  5,800W Natural Gas





  - One switch
  changes fuel
  selection!


  List of Features


  - EFI control
  Electronic fuel induction
  constantly adjusts to correct
  performance for lower fuel
  usage
  - Bi-Fuel
  Propane & Natural Gas with
  full ECO mode
  - Load starting
  Able to cold-start up to 75% of
  full load with either fuel
  - Secondary shut-off
  Built-in safety solenoid required
  for remote start
  - Billet aluminum upper
  air box injector unit
  Bolt-on replacement for plastic
  upper air box cover and clips


  There’s nothing else like this!


   - Inverter output
  120/240Vac
  - Whisper-quiet
  52dBa @ ¼ load

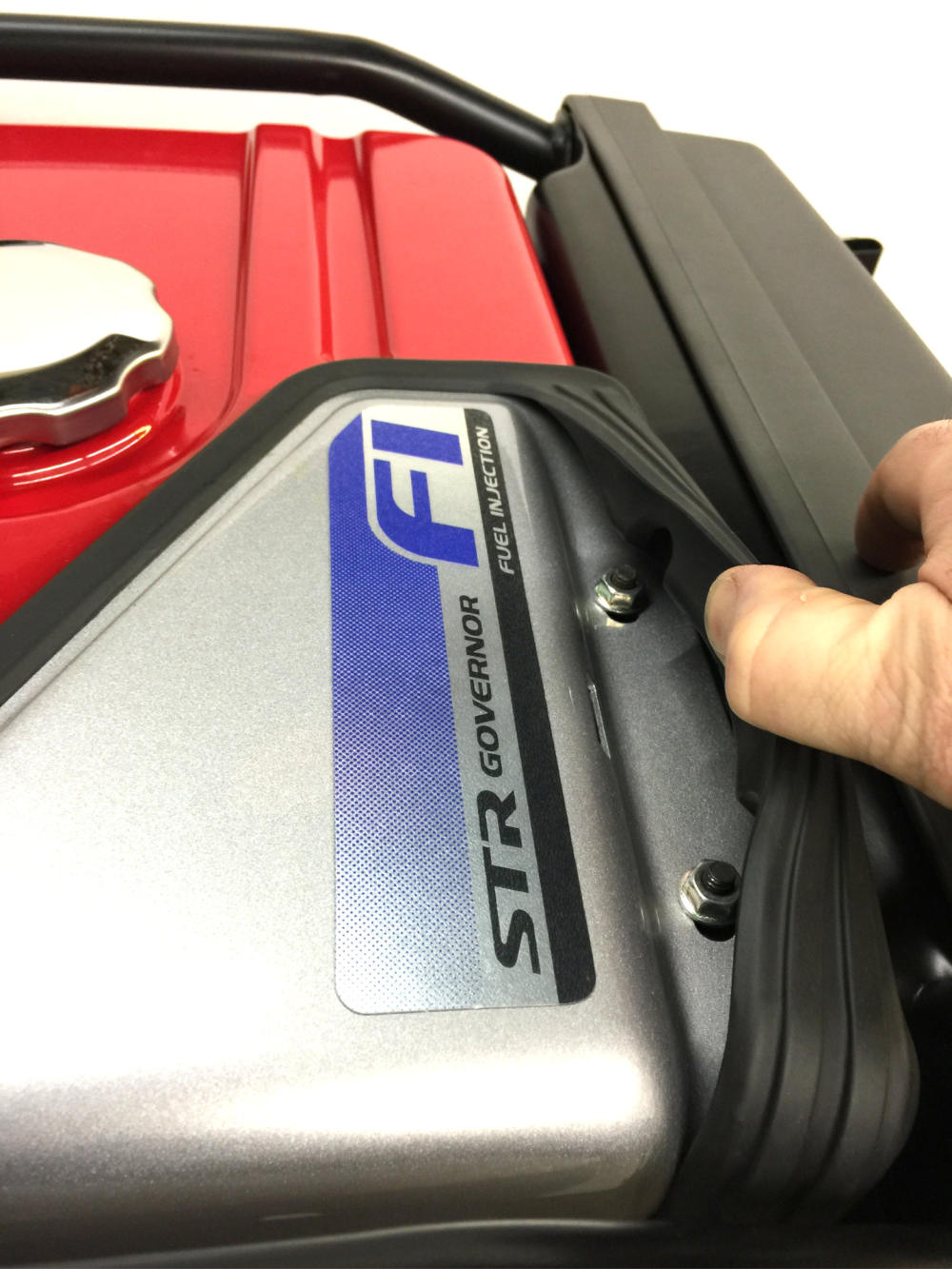

  Genconnex
  Aluminum upper air-box cover
  with integral fuel injector
  Provides precise control of fuel and
  strengthens upper air box
