Accessories










  More Options






  Add
  12’ x 1/4” id quick-
  disconnect proopane hose
  for 1/4” camper outlet


  Add

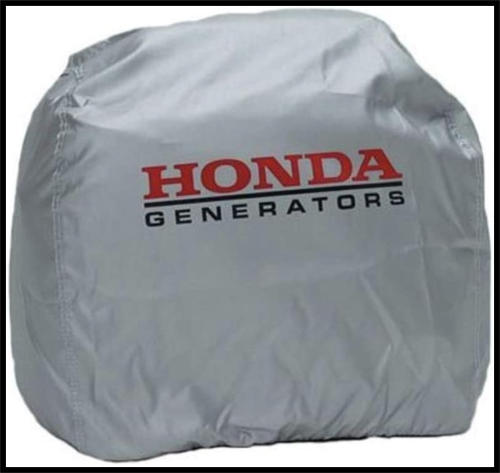

  Honda EU2200i
  series silver cover






  GXG LPNG-EU2200i-SA-EC1


  GXG LPNG-EU2200i-COMP-SA-EC1

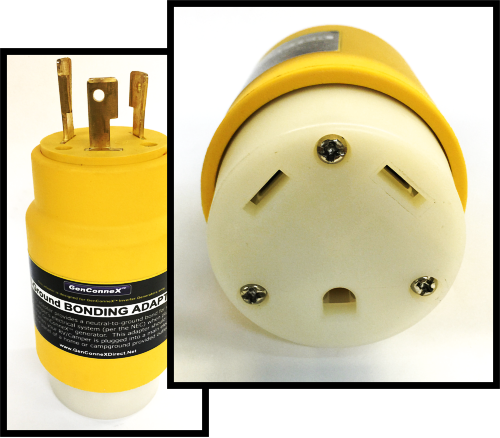

  Add Genconnex

  30Amp
  neutral to ground bonding
  120V trailer adapter






  Add

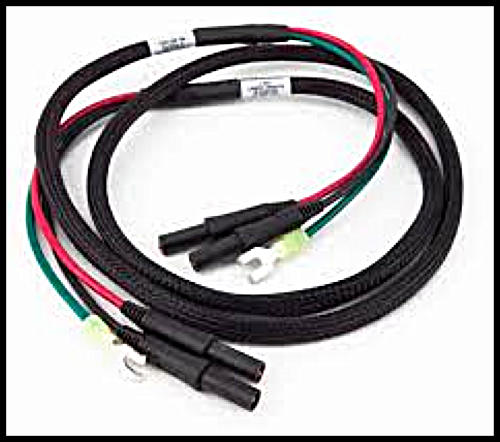

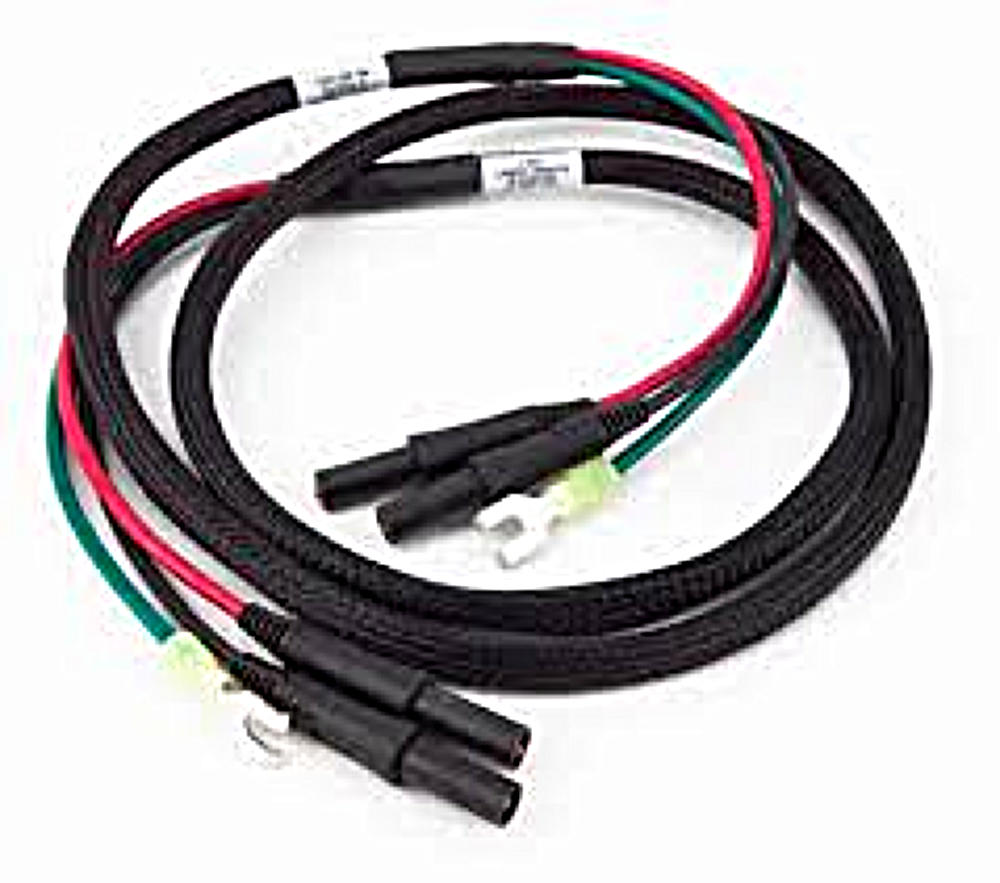

  Honda parallel cable to
  connect any two EU2200i
  together






  Add

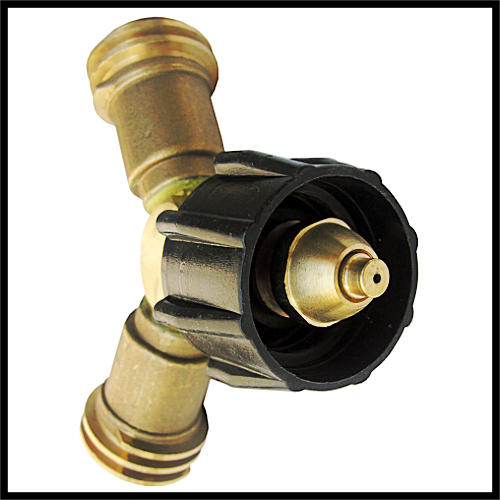

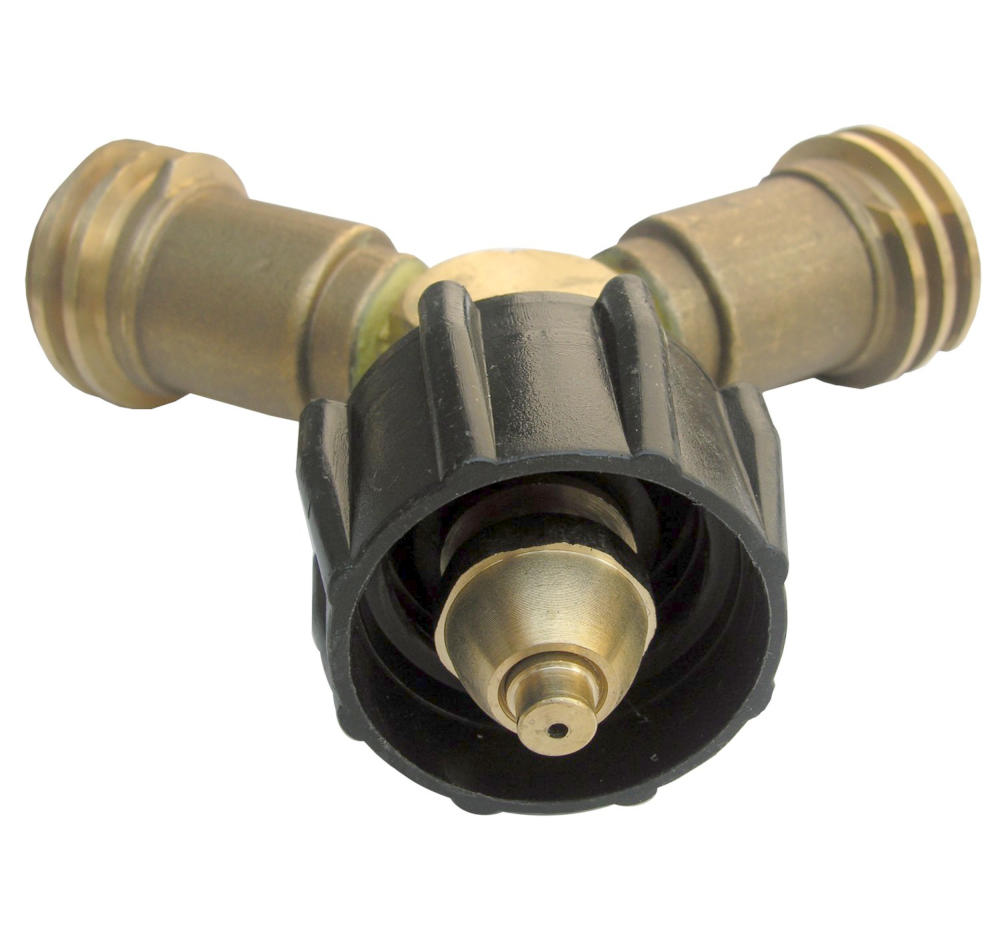

  dual output BBQ tank
  adapter





    Propane
       Nat. Gas         Load
  1.60  lbs/hr
     38,000BTU  1600 Watts
  0.92 lbs/hr
     20,000BTU    800 Watts
  0.70 lbs/hr
     15,000BTU    400 Watts





  $1,599.99


  Please note we are not a Honda dealer.  Honda is a registered trademark of Honda Motor Co.

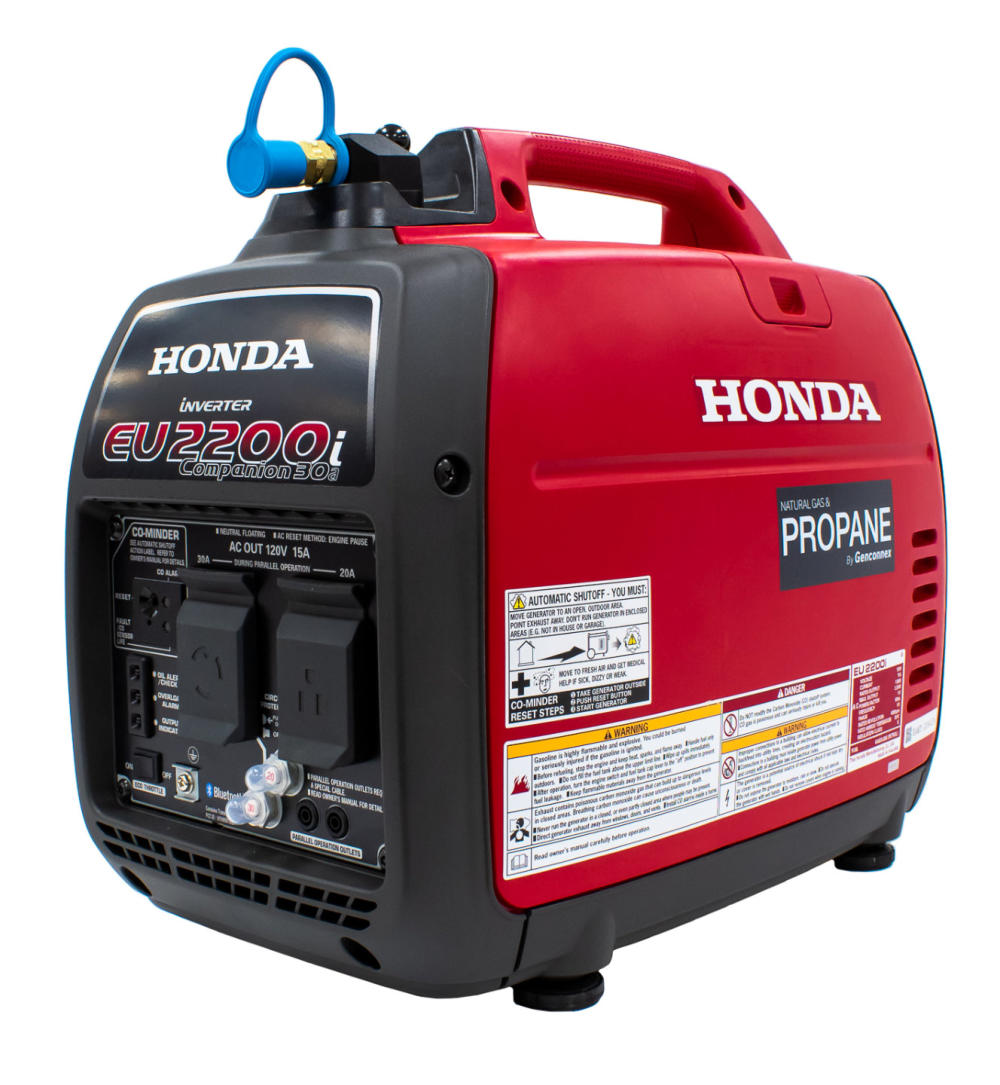

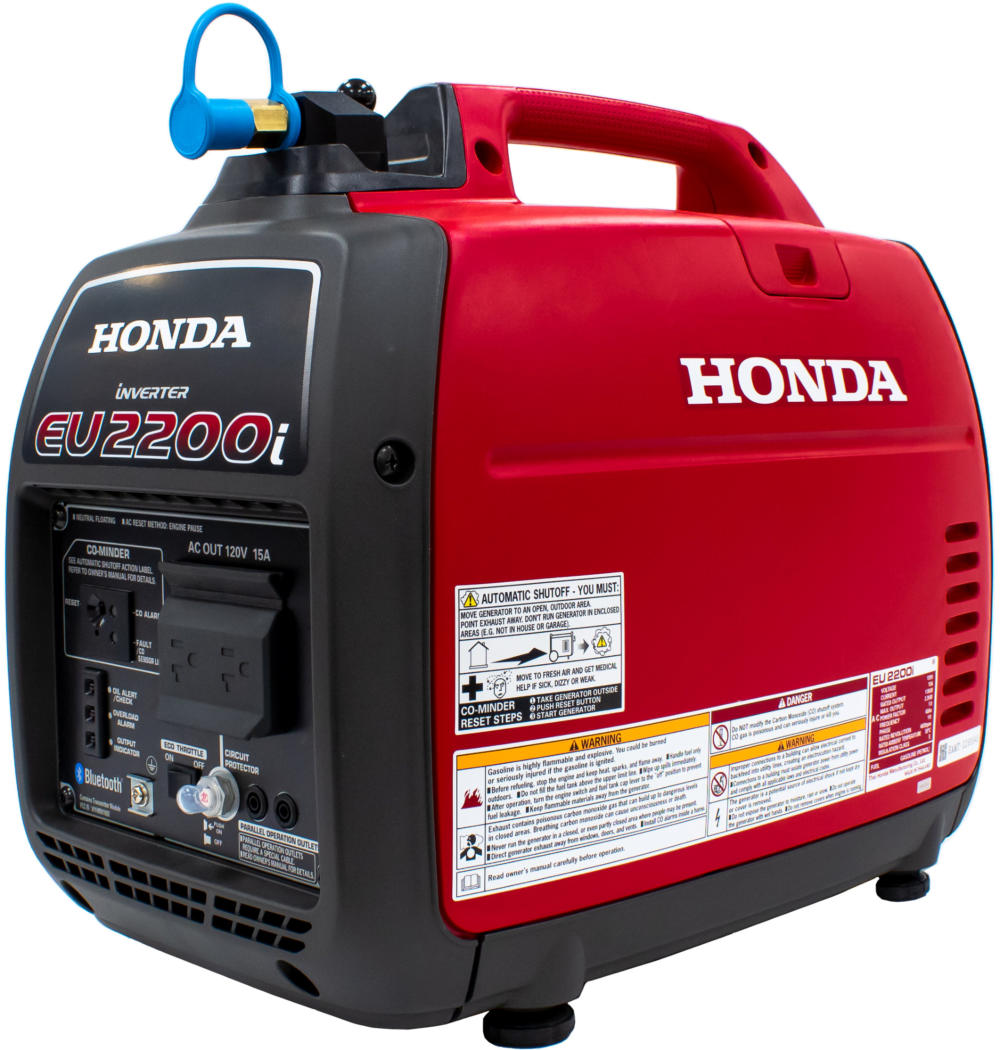

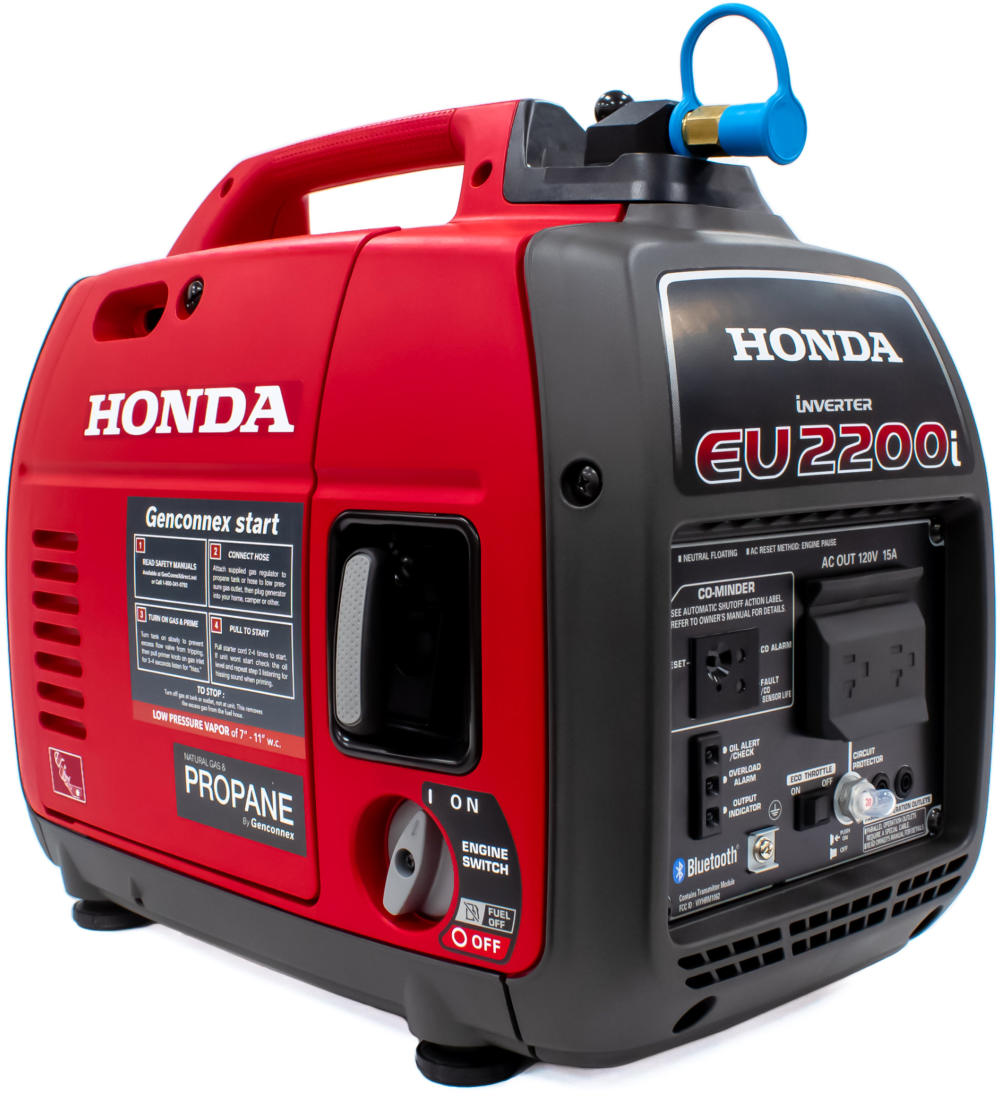

HONDA EU2200i Propane &
  Natural Gas Whisper Quiet
  Inverter Generator
  conversion engineered by Genconnex Direct








  This model has two 20Amp standard outlets.  This unit can be used by itself or it can be paralleled
  with a ‘Companion’ model to double the power using Honda’s parallel cable set.  The Honda
  parallel cable set plugs into a separate front panel connector so as not to use up any outlets.
  NOTE: IN CALIFORNIA FOR FARMING, CONSTRUCTION, OR EMERGENCY USE ONLY.



  This model has one 30Amp twist-lock outlet and one 20Amp standard.  This unit can be used by itself
  or it can be paralleled with a ‘Standard’ model to double the power using Honda’s parallel cable set.
  The Honda parallel cable set plugs into a separate front panel connector so as not to use up any
  outlets.  This version is ideal for camping trailers that already have 30Amp twist-lock cord or for getting
  full power from one outlet of two paralleled units that would otherwise overload a single 20Amp outlet.
  NOTE: IN CALIFORNIA FOR FARMING, CONSTRUCTION, OR EMERGENCY USE ONLY.




  $89.99
  shipping


  +


  $1,699.99


   $89.99
  shipping


  +











  Companion Model














  Base Model


  GXG LPNG-EU2200i-COMP-SA-EC1  +
  GXG LP-EU2200i-SA-EC1


  $3,409.96


  $179.98
  shipping


  +





  #1 Best Seller for Airstream campers



  #1 Best Seller




  Shipping Rates Apply
  To lower 48 States Only
  Not eligible for ship to Canada
  High Altitude Kit is in addition
  and does not come installed


  Shipping Rates Apply
  To lower 48 States Only
  Not eligible for ship to Canada
  High Altitude Kit is in addition
  and does not come installed





  Shipping Rates Apply To lower 48 States Only
  Not eligible for ship to Canada
  High Altitude Kit is in addition and does not come installed



  Base Model (w/Bluetooth)


  Companion Model (w/Bluetooth)




  Add

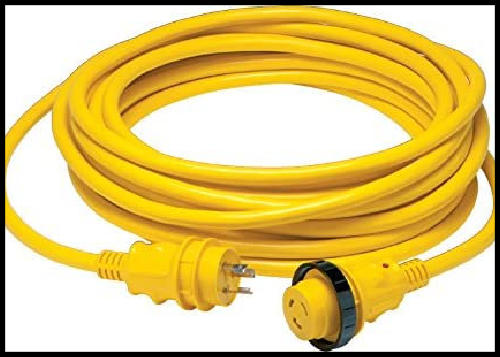

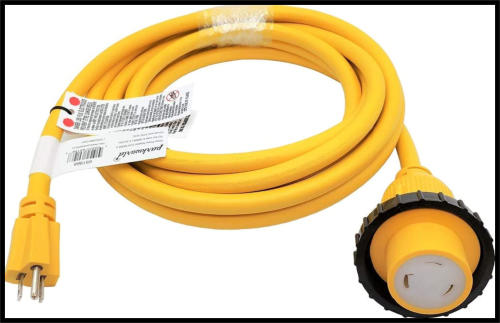

  Marine Grade
  5-15P to L5-30 Outlet
  16ft extension cord


  Ships in 2-3 days


  Ships in 2-3 days


  Ships in 2-3 days

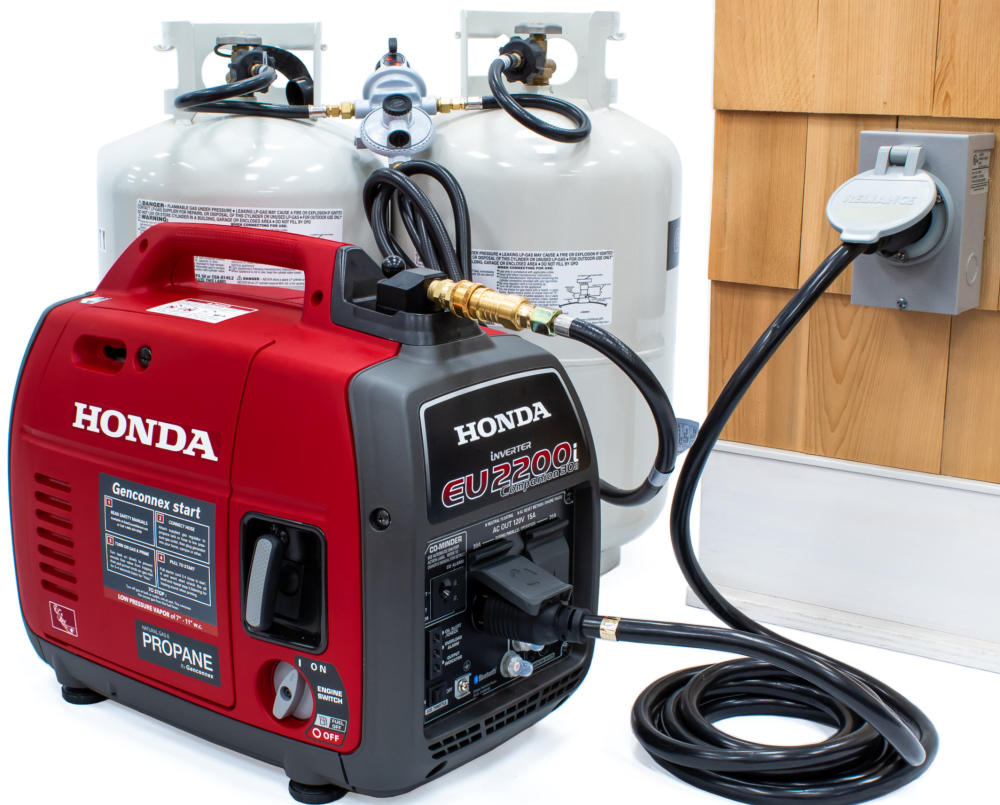

  1- EU2200i Companion
  1- Dual tank auto switchover valve
  1- 120Vac - 30Amp inlet kit
  1- Transfer switch (not shown)
  1- 15ft L5-30 extension cord


  By using a dual tank
  auto switchover valve
  you can exchange
  the empty tank
  without turning off
  the generator!


  Or build your own really cool
  custom solution like this.

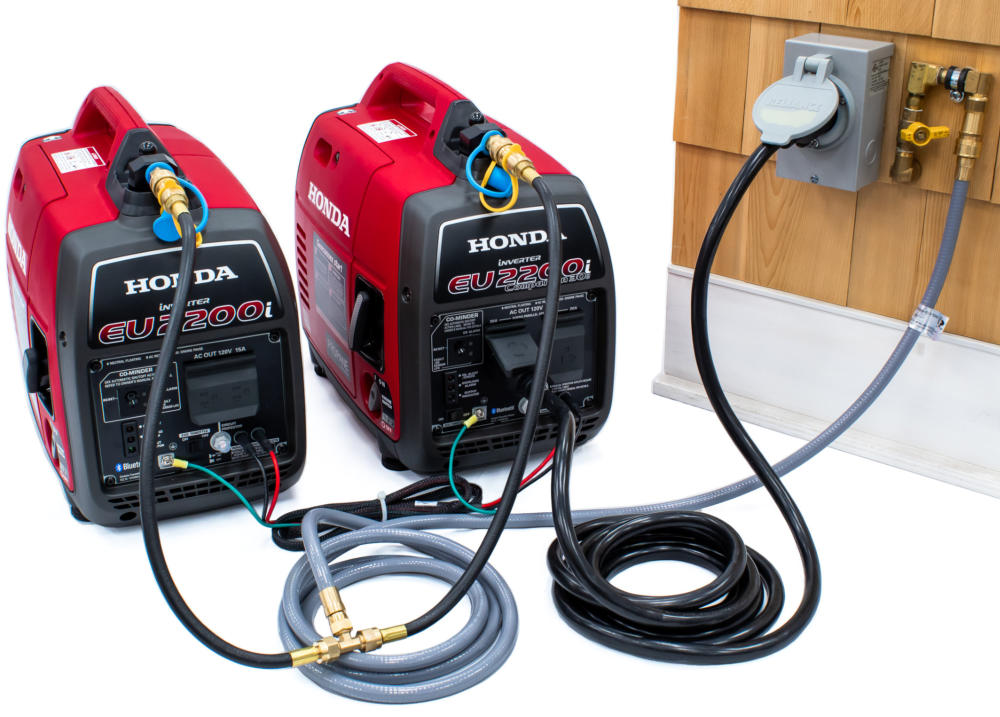

  Want to connect
  two Honda 2200’s
  to your home’s
  propane or natural
  gas?


  1- EU200i Standard
  1- EU2200i Companion
  1- Dual output 3/8id gas hose
  1- 120Vac - 30Amp inlet kit
  1- 15ft x L5-30 extension cord
  1 - Honda EU2200i parallel cables


  Warning: always use a licensed
  plumber to make any changes to
  your home’s gas supply.

  Pipe size, shutoff valve location,
  nearby windows and openings and
  more are all part of the safety codes a
  qualified plumber is required to know
  to keep you safe!

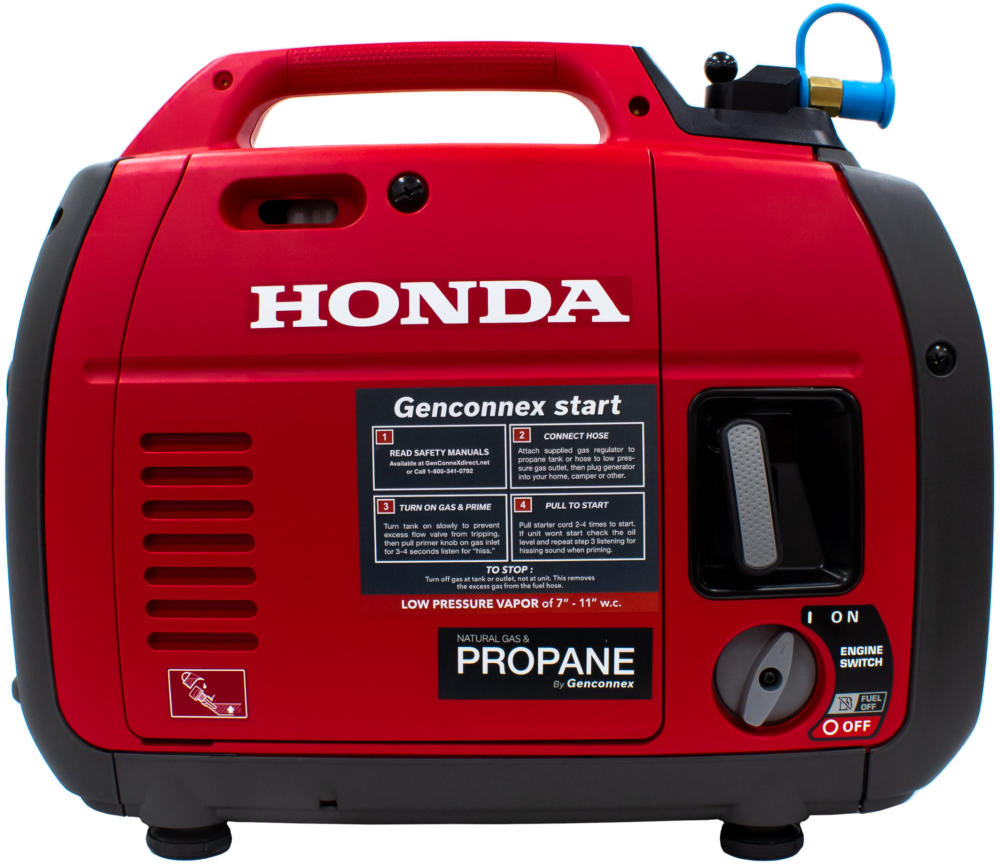

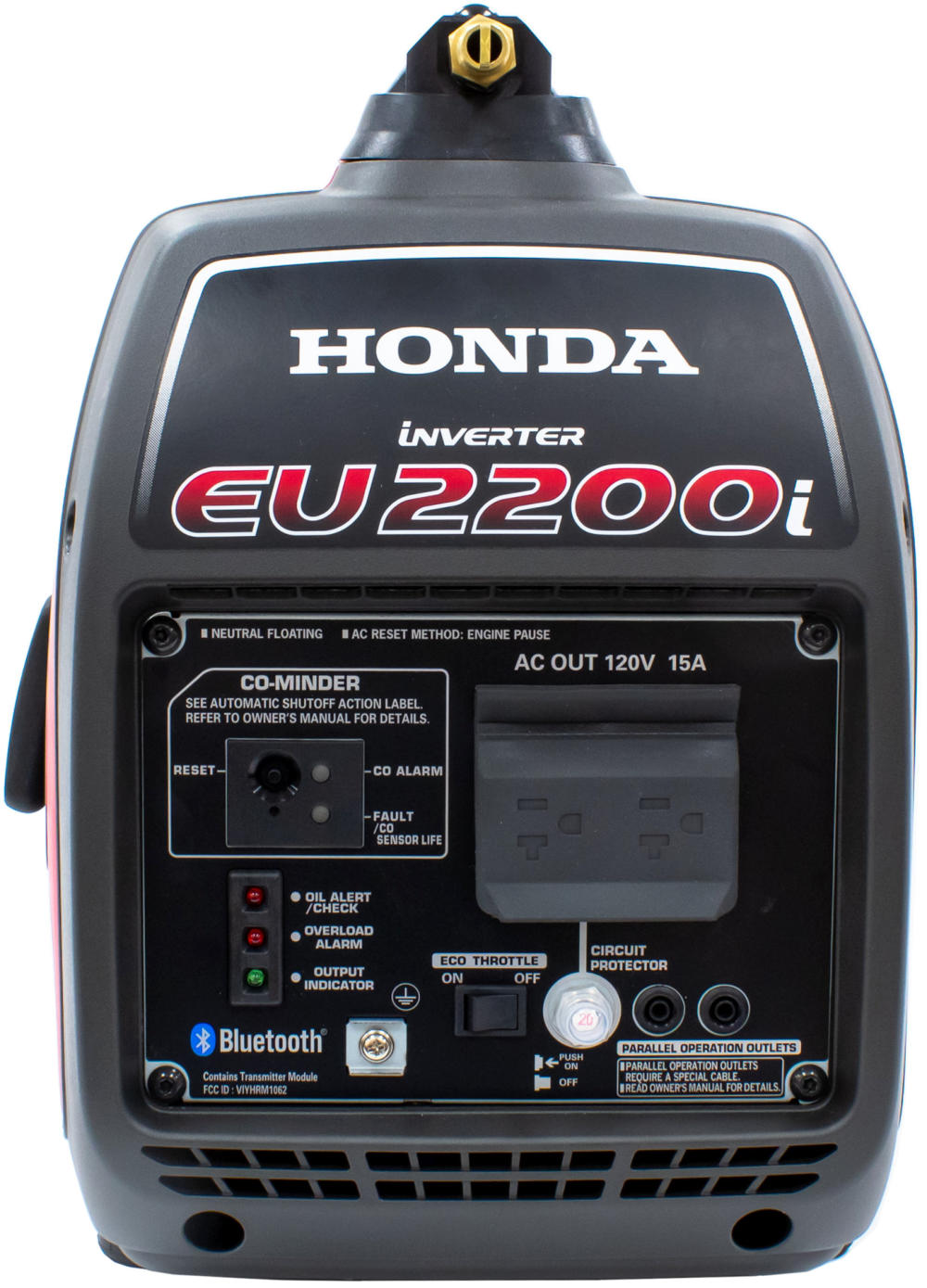

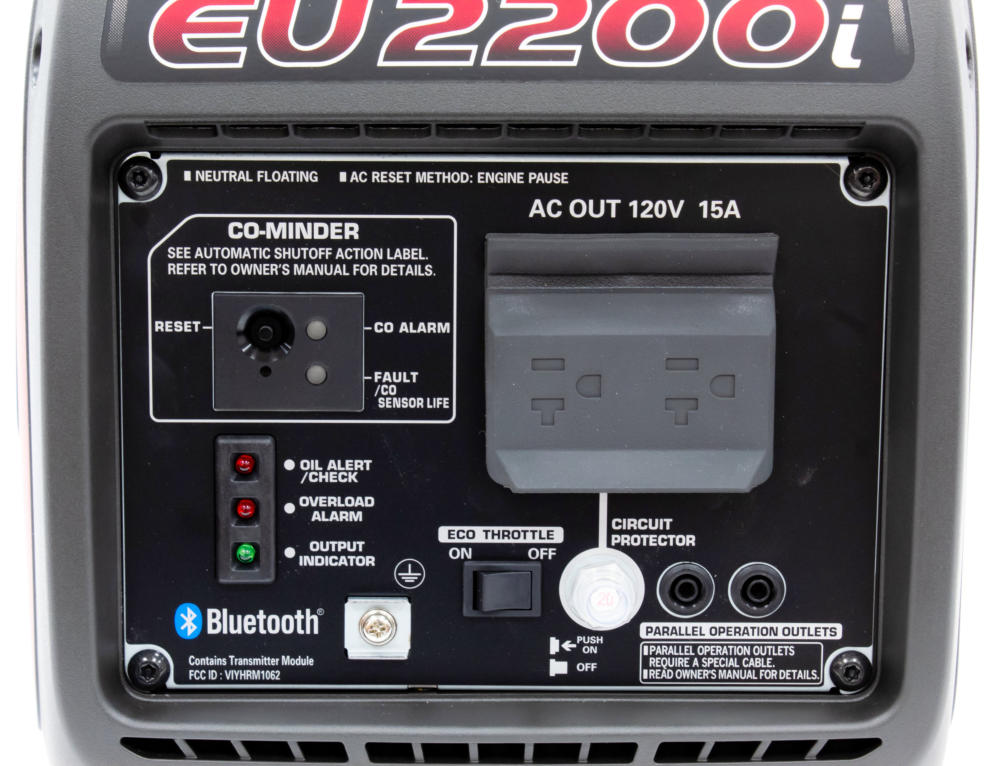

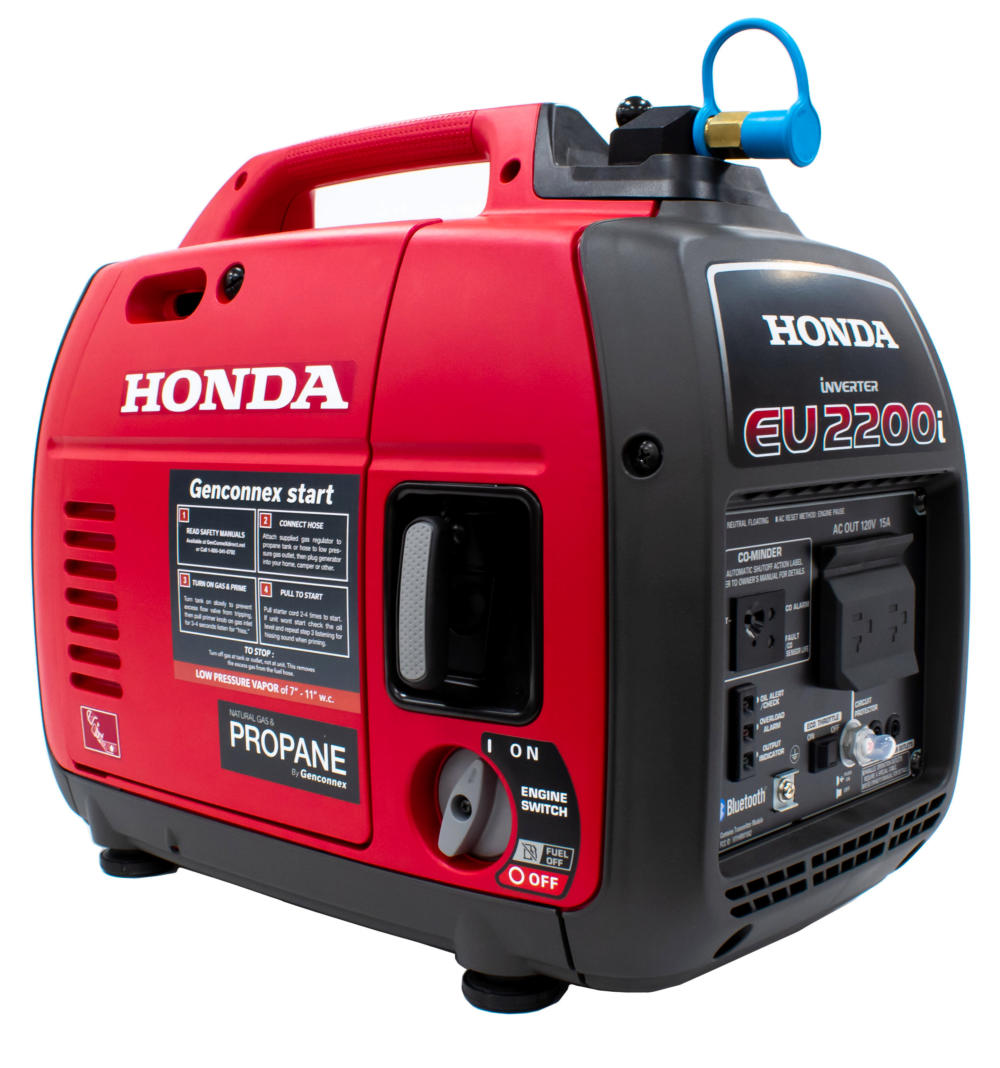

  Front view


  2 standard
  outlets under
  protective
  cover

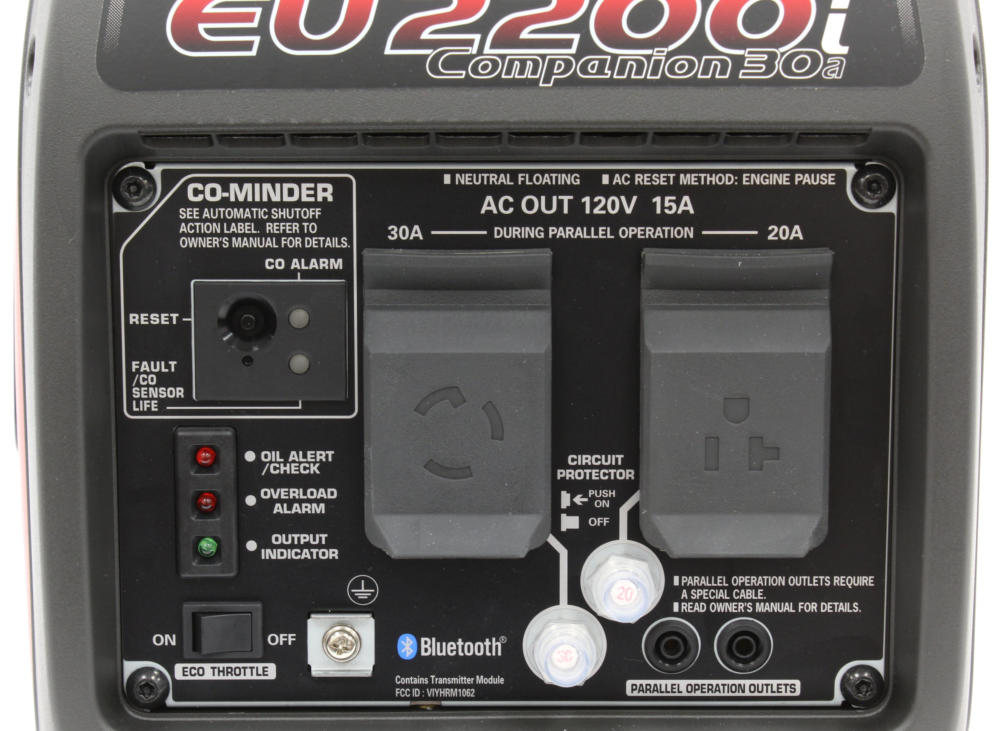

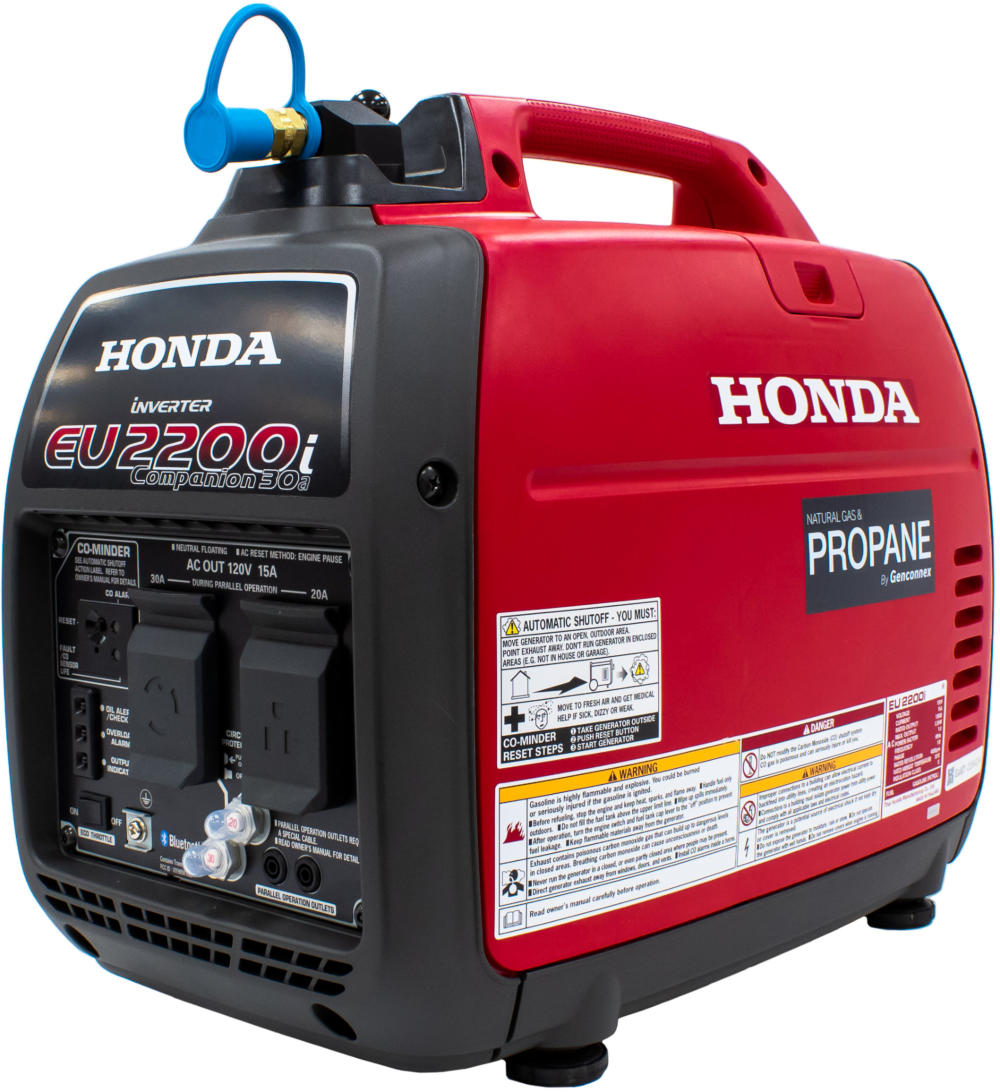

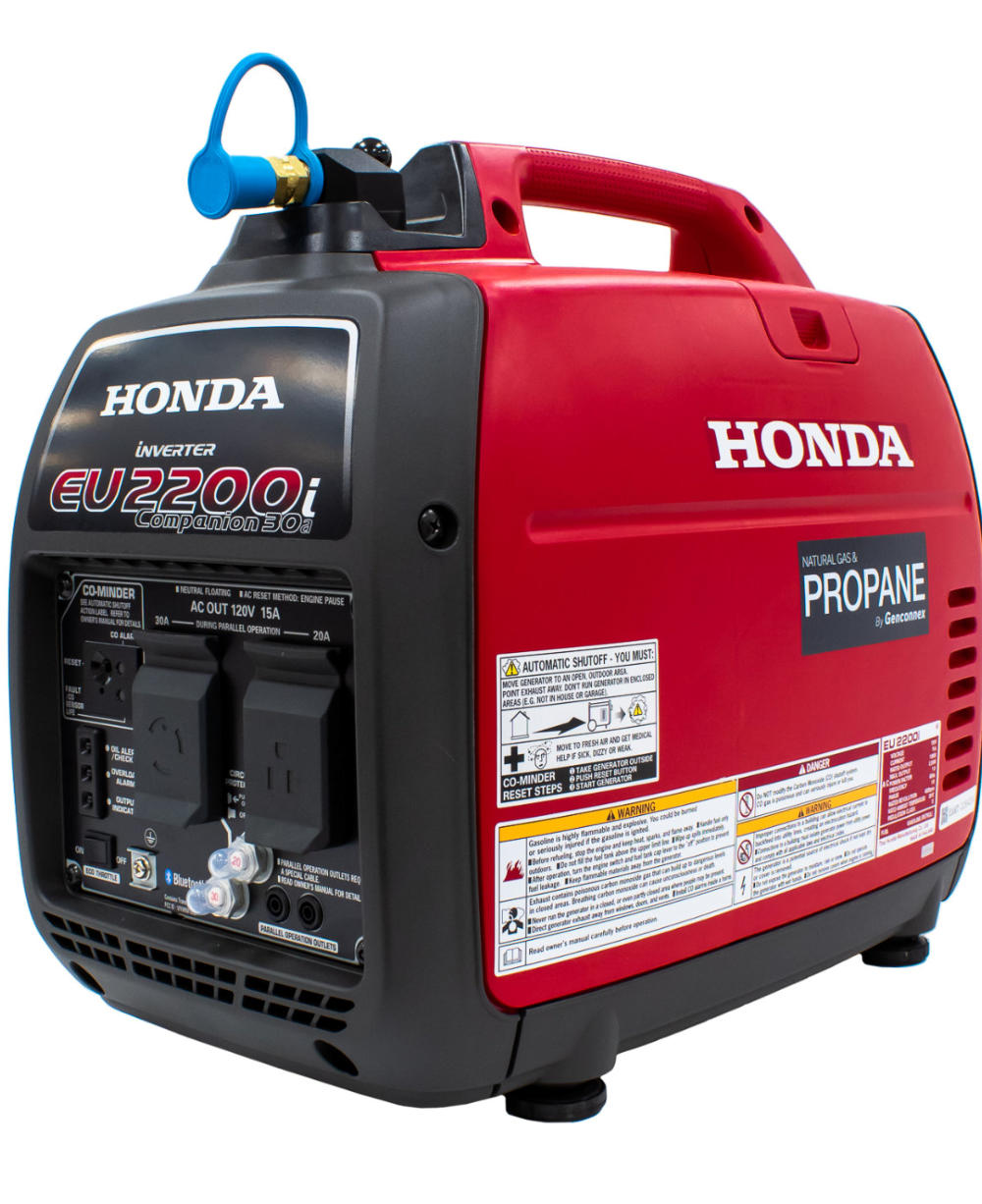

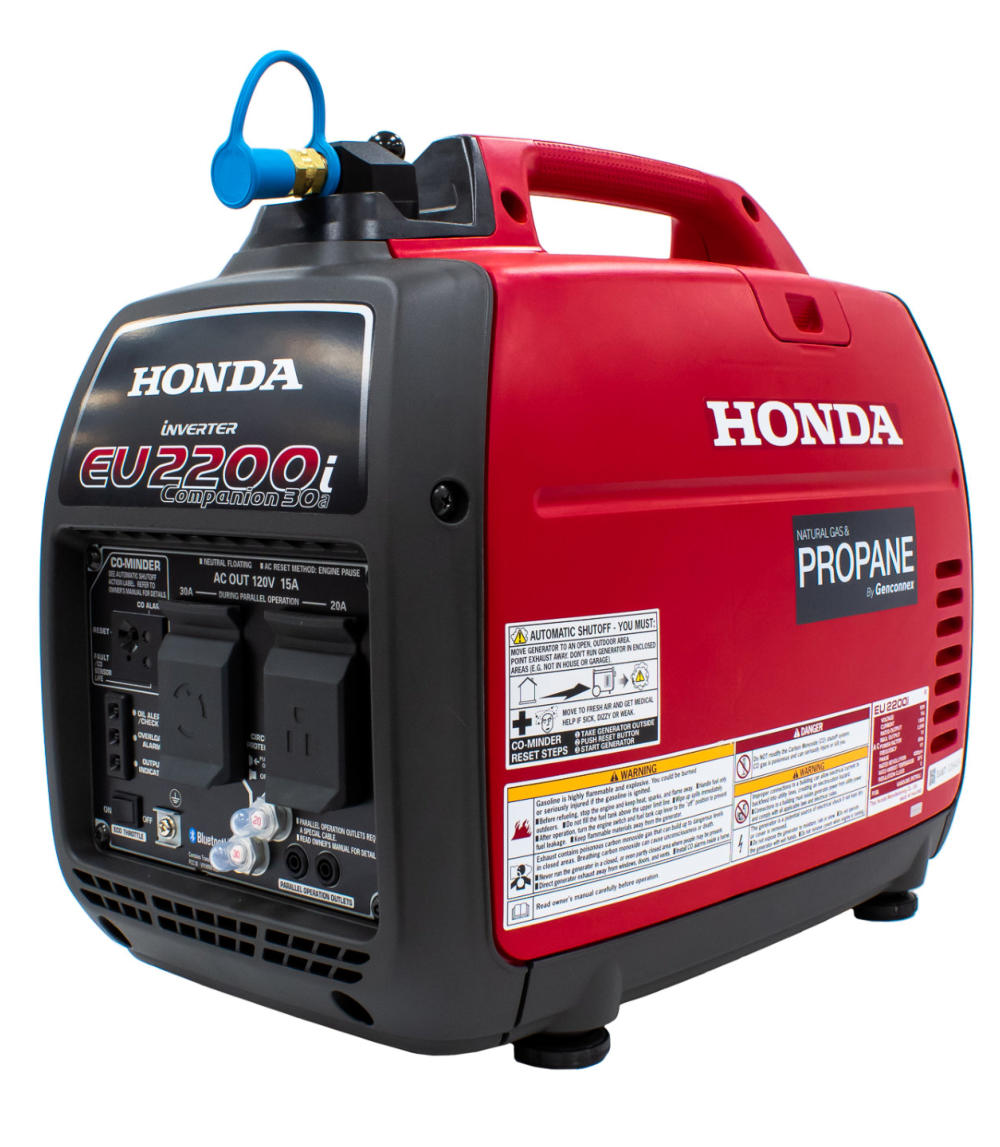

  Front view


  1 standard outlet and 1
  30Amp outlet under
  protective cover. The
  30Amp outlet is rated to
  handle the combined
  power of 2 EU2200’s in
  parallel.









  GXG LPNG-EU2200i-COMP-SA-EC1  +
  GXG LP-EU2200i-SA-EC1


  $3,441.95


  $179.98
  shipping


  +


  Shipping Rates Apply To lower 48 States Only
  Not eligible for ship to Canada
  High Altitude Kit is in addition and does not come installed


  Ships in 2-3 days








  3,600 Watt Natural Gas / 4,400 Watts Propane Parallel Package

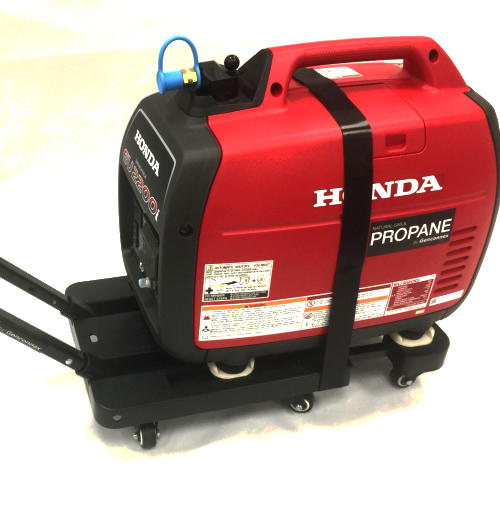

  wheelie-cart


  tm


  The Genconnex
  ®








  Click Here for more Information







  two 12ft ⅜” hoses


  12ft double output ⅜” hose














  Add
  Marine Grade
  L5-30P to L5-30 Outlet
  12ft extension cord


  Add
  Marine Grade

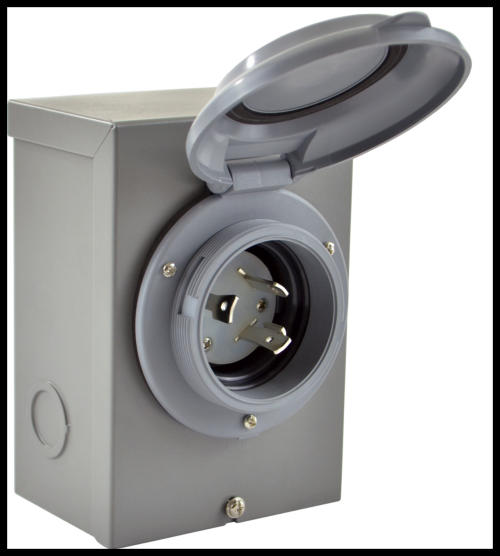

  L5-30 outdoor inlet kit


  Add
  6 foot propane hose
  with regulator for BBQ
  tanks

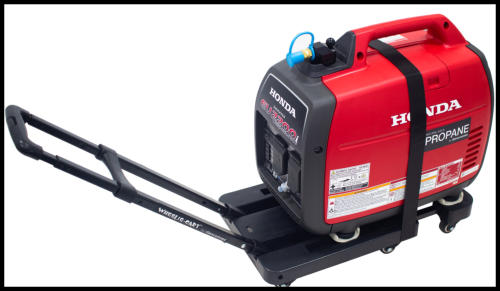

  Add

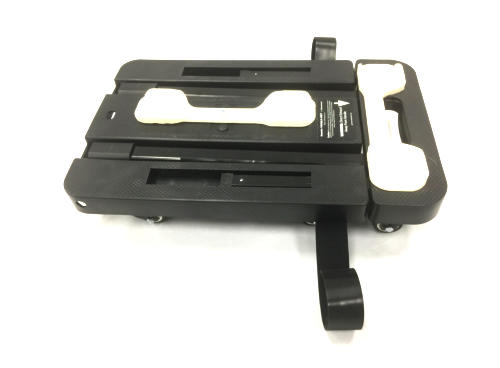

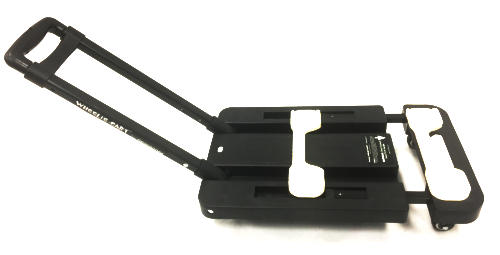

  Genconnex
  ®
  2200i & 3200i
  Wheelie Cart
  ™






  Add

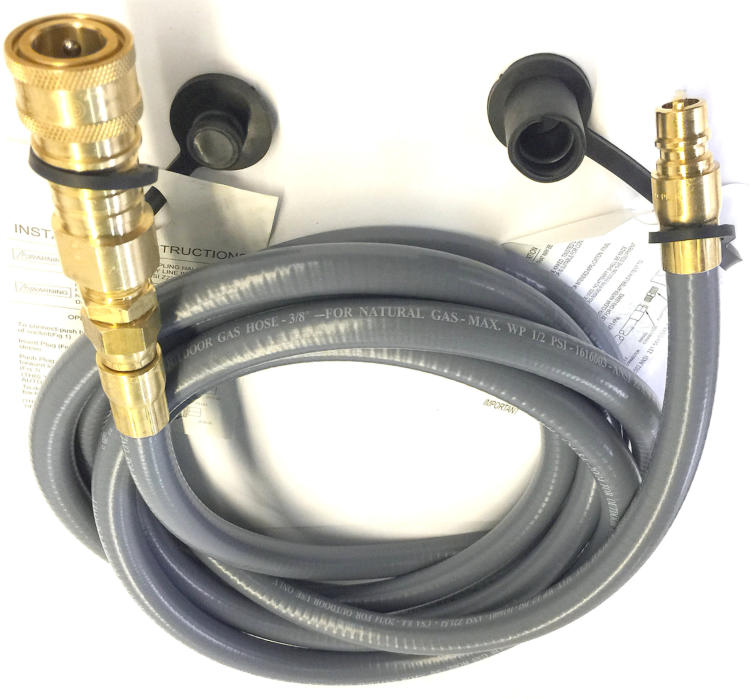

  12’ x 3/8”id quick-disconnect
  extension hose for propane &
  natural  gas






  Add
  12’ x 1/2”id quick-disconnect
  extension hose for propane
  and natural gas





  OUT OF STOCK





click pictures to enlarge




  A NOTE ABOUT
  NATURAL GAS APPLIANCES:
  Some
  states
  (including
  but
  not
  limited
  to
  MA)
  require
  portable
  generators
  that
  are
  connected
  to
  a
  home’s
  gas
  supply
  (even
  temporarily)
  to
  be
  listed
  devices.
  Other
  states
  default
  to
  the
  International
  Fuel
  Gas
  Code
  and
  allow
  non-listed
  outdoor
  only
  devices
  such
  as
  outdoor
  natural
  gas
  grills,
  heat
  lamps
  and
  other
  accessories
  to
  be
  installed
  as
  permitted
  by
  your
  town
  and
  local
  inspector.

  Please
  check
  first
  with
  your
  local
  inspector
  if
  you
  are
  not sure.



  Always use a
  licensed plumber!
  This is your home.
  Get it done right and get it
  inspected.  Nobody knows state,
  federal and local safety codes
  better than the licensed experts.



  All off our generators work with our optional
  APC/HONDA programmable auto load
  shedding 120Vac transfer switch kits.  Our kits
  aren’t just the basic switch, but come complete
  with an outdoor water tight power inlet install
  package


  This switch, designed by APC and HONDA will
  automatically shed less needed loads to make sure there’s
  enough power to start critical loads. Then it automatically
  turns the other loads back on as more power becomes
  available!
  For instance, it will automatically turn off your fridge and
  freezer for 10min while you make popcorn in your
  microwave - even with a 2000Watt Honda or Yamaha!


  This is how you connect your home to your
  generator


  GET A
  “SMART” CIRCUIT
  TRANSFER SWITCH!


  Automatic
  home
  backup of
  6-10
  circuits!


  Includes a 30Amp
  outdoor inlet kit



Need
  Automatic
  Load
  Management?














  Generator Features and Benefits
  - 2,200 / 1,800 Watts peak/rated propane
    1,800 / 1,800 Watts peak/rated natural gas

  - Ultra Sound Absorbing Enclosure
      At 48dBa @1/4 load, sleeping won’t be a problem

  - Propane & Natural gas Ready
      Just connect it to your BBQ
      tank and run, or natural gas grill outlet.

  - Pull Start
      No battery to keep charged and lighter to carry

  - 120VAC Output

  - Inverter Output
      Fuel efficient and electronics safe

  - Approx. 48 pounds
      Lightest class of generator due to inverter technology

  - Warranty
   - We offer a new limited warranty of 3
  years/1000hr - see our warranty page.

- EPA certified 50 states

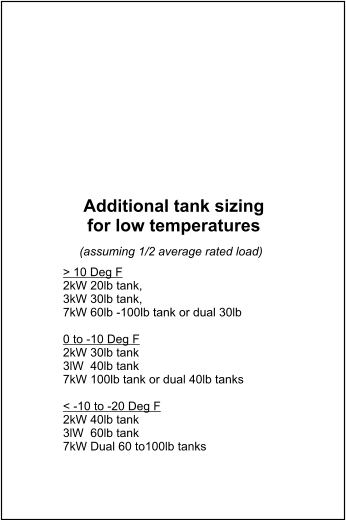

  > 10 Deg F
  2kW 20lb tank,
  3kW 30lb tank,
  7kW 60lb -100lb tank or dual 30lb
  0 to -10 Deg F
  2kW 30lb tank
  3lW  40lb tank
  7kW 100lb tank or dual 40lb tanks
  < -10 to -20 Deg F
  2kW 40lb tank
  3lW  60lb tank
  7kW Dual 60 to100lb tanks


  Additional tank sizing
  for low temperatures


  (assuming 1/2 average rated load)






  FUEL USAGE






  How long will
  my tank last?






  Shutoff +Quick Disconnect


  How simple is it?
  Add an outdoor shutoff valve then a quick-
  disconnect for your generator and gas grill.
  Then order one of our gas extension hoses
  and...


  We use the same pressure as the
  natural gas or propane inside your
  home.

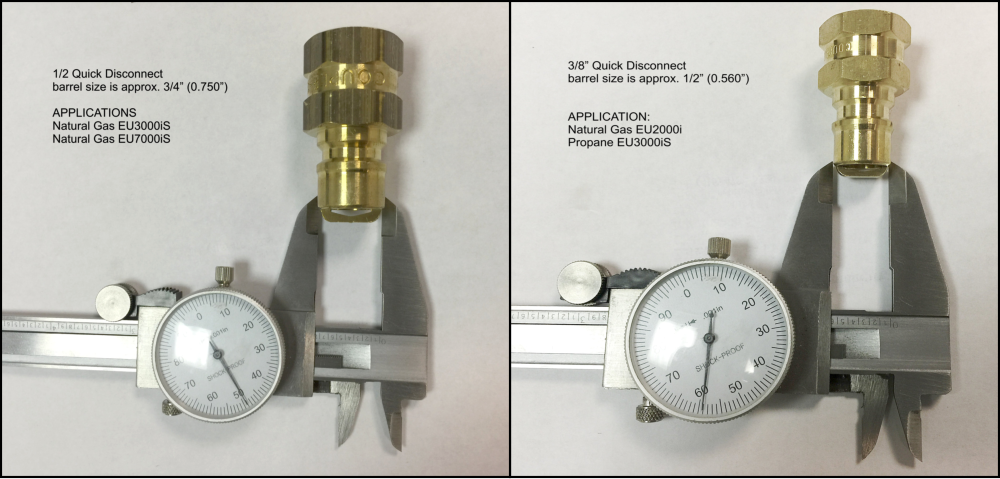

All Genconnex generators have a
  ⅜” quick disconnect inlet for easily
  connecting to your grill port or BBQ
  tank using our hose with pressure
  reducing regulator to a pressure of
  7-13”w.c.,  (aka 1/2” PSI)

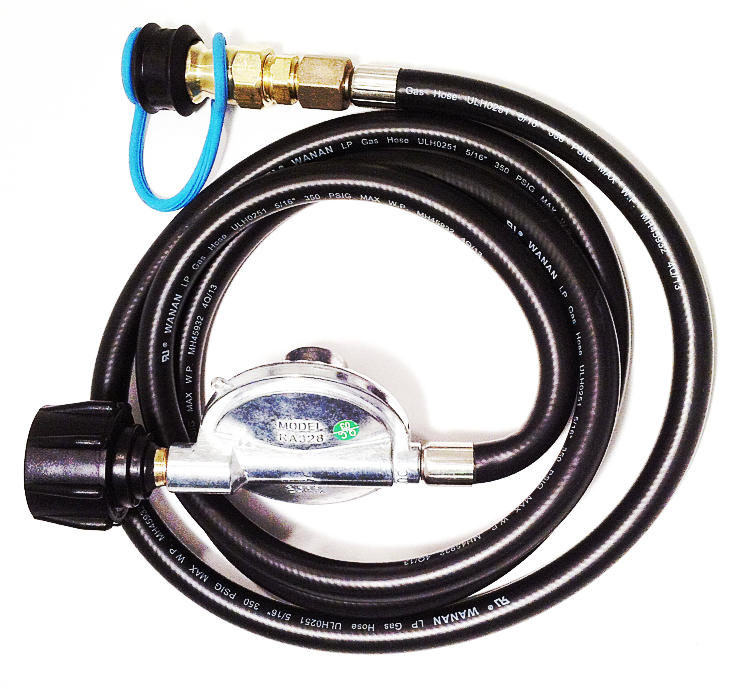

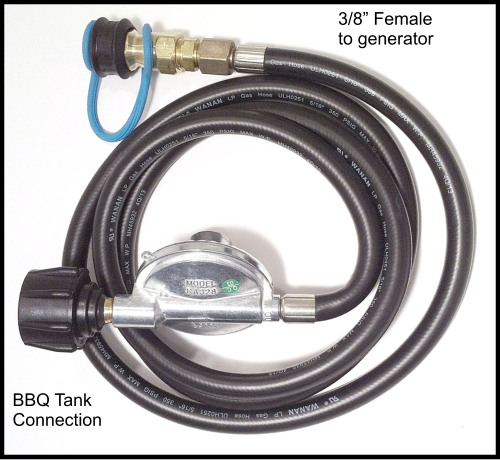

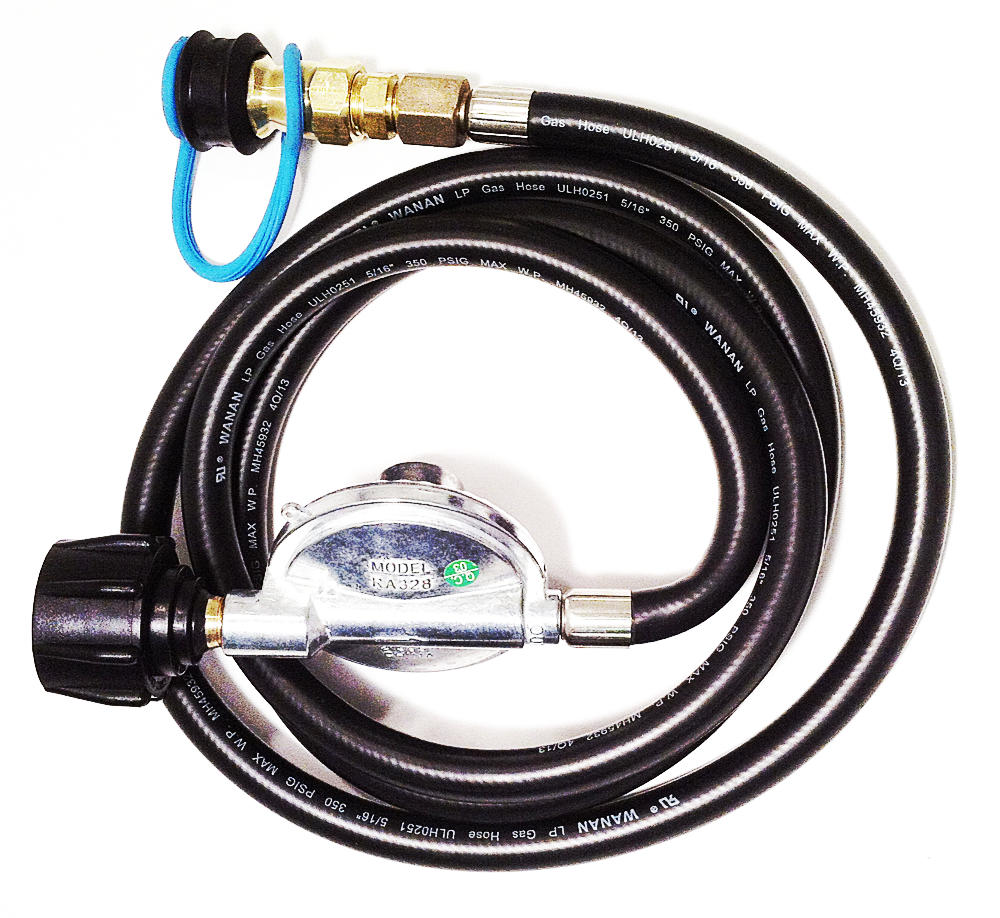

  6’ propane hose with
  integral regulator for
  connecting to standard
  BBQ tank

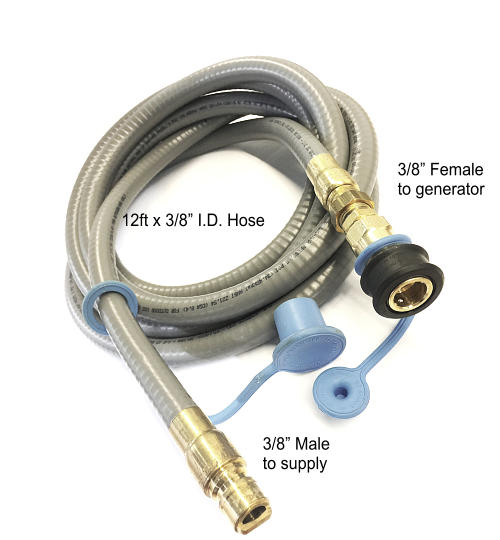

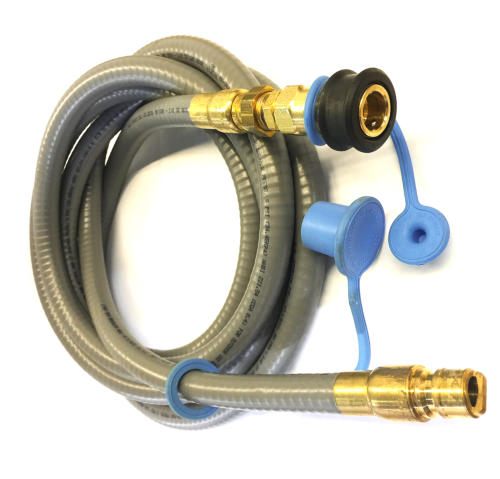

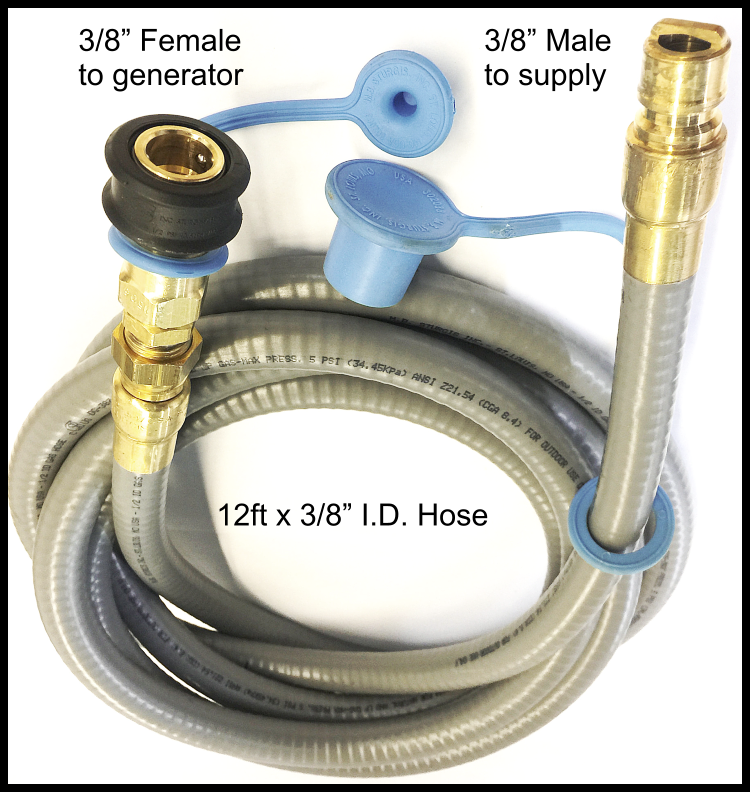

  12’ x 3/8” id hose with
  3/8” quick-disconnect
  MUST USE FOR
  NATURAL GAS

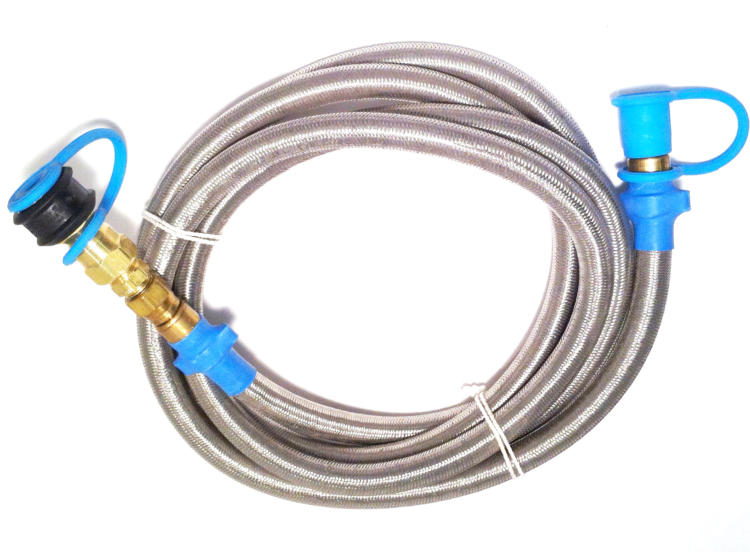

  6’ stainless steel over-
  braided hose with 3/8”
  quick-disconnect











  12’ propane hose with
  integral regulator for
  connecting to standard
  BBQ tank


  GENERATOR DIMENSIONS
  20”l x 11.4”w x 16.7”h
   x 48lbs


  How do I connect
  to my home’s
  natural gas or
  propane?











  Additional Information


  FUEL CONNECTION


  Order Options


























































































  Base Model


  Companion Model


  EU2200i
  HOSE OPTIONS

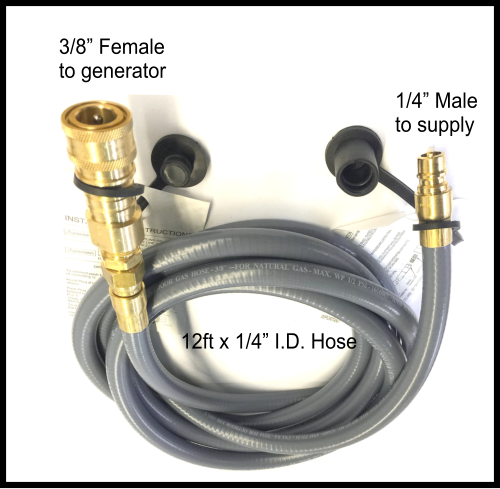

  12’ x 5/16” id hose
  with 1/4” Trailer quick-
  disconnect



  2 standard
  outlets under
  protective
  cover


  1 standard outlet and 1
  30Amp outlet under
  protective cover. The
  30Amp outlet is rated to
  handle the combined power
  of 2 EU2200’s in parallel.


  Output ratings are +/-3% measured at 68deg F, 29.92
  inches of mercury. Your results may vary at different
  temperature, and air pressure/altitude


  No Sales Tax outside of Massachusetts


  No Sales Tax outside of Massachusetts


  This package combines the Base Model shown above with the
  Companion model for total power of 4,400Watts.  Simply connect
  the parallel cables into the special parallel input jacks and use the
  30 Amp outlet on the Companion for your main outlet.  This
  package includes 2 6ft hoses with pressure reducing regulators that
  hand screw onto standard BBQ tank outer threads, a tank splitter to
  run both from one tank if you prefer and parallel cables.  NOTE: IN
  CALIFORNIA FOR FARMING, CONSTRUCTION, OR
  EMERGENCY USE ONLY.


  4,400 Watt Propane BBQ Tank Parallel Package


  No Sales Tax outside of Massachusetts





  Companion Model


  Base Model





  This package combines the Base Model shown
  above with the Companion model for total power
  of 3,600Watts on natural gas or 4,400Watts on
  propane.  Simply connect the parallel cables into
  the special parallel input jacks and use the 30
  Amp outlet on the Companion for your main
  outlet.  NOTE: IN CALIFORNIA FOR FARMING,
  CONSTRUCTION, OR EMERGENCY USE
  ONLY.


  No Sales Tax outside of Massachusetts


  Choose your
  hoses at
  checkout


  Dual Tank Auto
  Switchover
  Regulator


  Tired of carrying
  your EU2200i or
  EU3200i?


  Click Here for more Information






  Specifications



HONDA EU2200i
  Propane & Natural Gas
  Conversion by Genconnex Direct



Typical Loading
  Refrigerator
  Freezer
  Heating system or window A/C units
  Hall or bathroom lights
  Garage door opener
  Microwave and coffee maker
  Internet/TV and room light
  kitchen light
  120Vac sump pump



- 2,200Watt Propane
       1,800 Watts Nat.Gas
  - 120Vac
  - Inverter Output
  - Whisper Quiet
  - Hand Portable
  - BlueTooth



Whisper quiet
  Unlike a typical 70dB
  portable generator that runs
  so loud it can wake the dead,
  these are stunningly quiet!
  Yes, you and your neighbors
  will appreciate it.


  Please scroll down
  for all EU2200i
  variations
